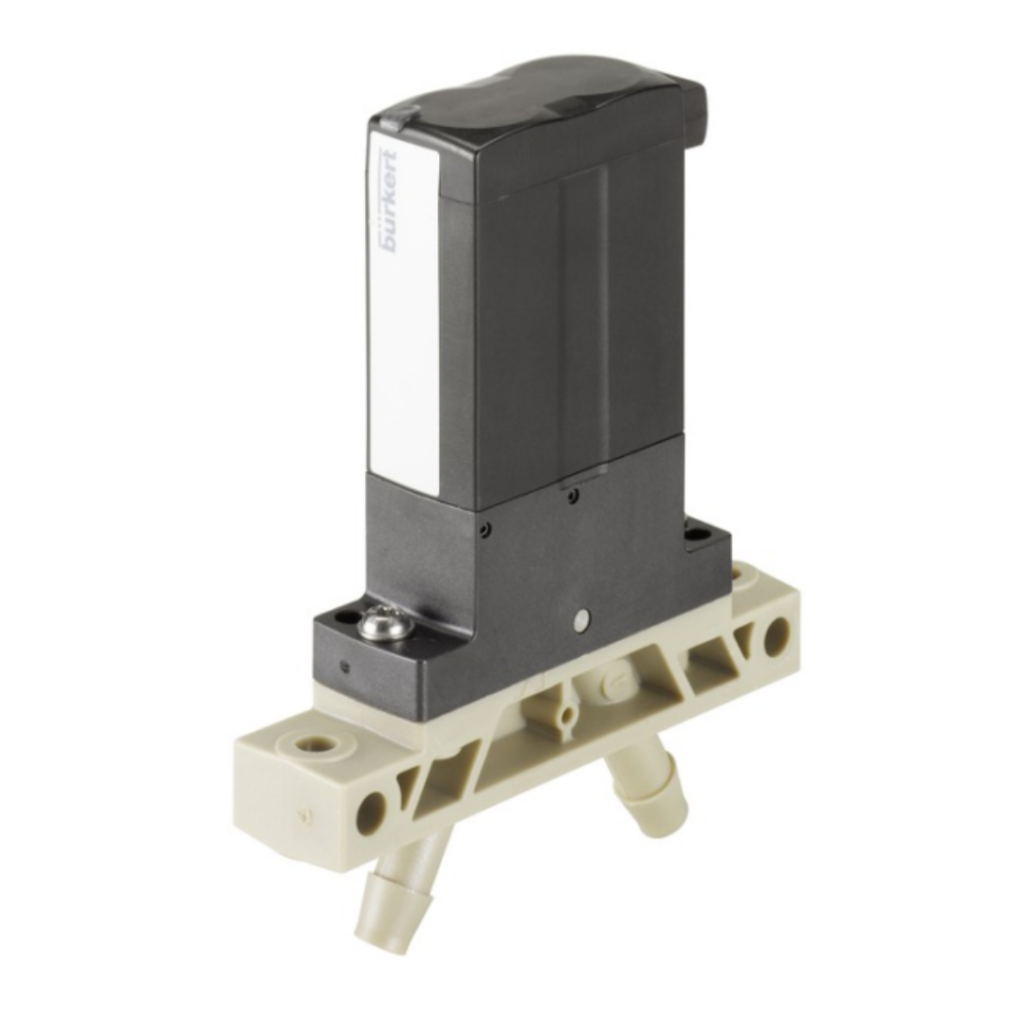

Bürkert Type 6626 Twinpower rocker solenoid valve with separating diaphragm

Bürkert Type 6626 Twinpower rocker solenoid valve with separating diaphragm

Bürkert Type 6626 Twinpower rocker solenoid valve with separating diaphragm

Product Code: Type 6626 - Direct acting rocker solenoid valve

Manufacturer: Bürkert


Download PDF

Type 6626 combines the reliable and successful Rocker principle with a highly innovative new actuator. The TwinPower concept of this actuator reduces the size greatly without loss in performance. Hence the 16 mm wide medium isolated rocker valve, 6626, with a 3.0mm orifice and a pressure resistance of 2 bar, provides the same performance as a traditional 22 mm valve. In addition, the integrated power reduction decreases the energy consumption by 75%. In combination with other design features the heat transfer into the medium can be reduced to a minimum.

In the design of the 6626, the main benefi ts lie in its excellent cleanability and a high reliability. By using high performance materials the 6626 suits the handling of aggressive medium perfectly. The valve is available in a 2-way and
3-way version.

2/2 or 3/2 way direct acting rocker solenoid valve for analytical applications; DN 3.0 mm; vacuum up to 2 bar; 16 mm width; medium separation.

Datasheet Download
Instruction Manual Download
