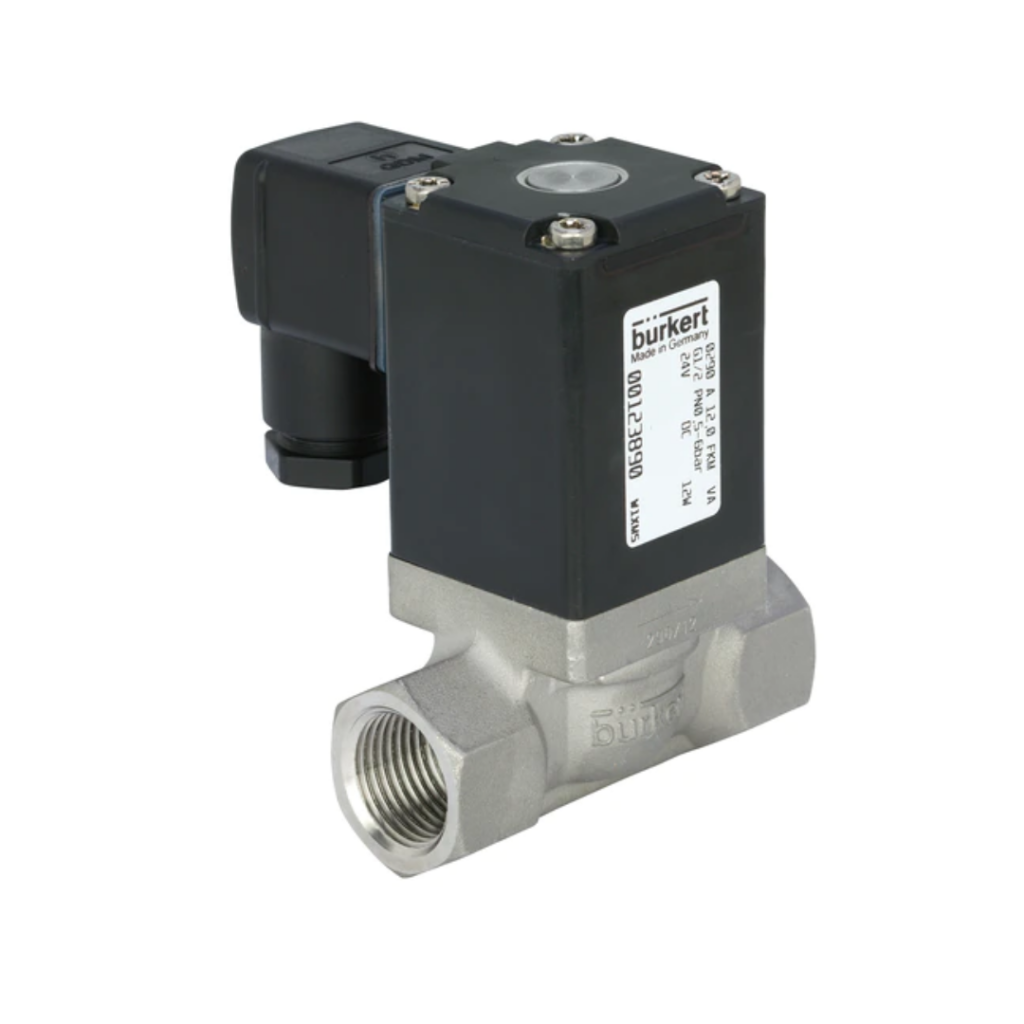

The 0290 valve is a servo-assisted diaphragm valve of the S.EV series. The valve opens without differential pressure. The opening process is facilitated by the fix coupling of the diaphragm to the magnetic core. The integrated ‘soft-kick’ function ensures gentle opening. Various diaphragm materials are available depending on the actual application. Stainless steel body variants complete the offering. The solenoid coils are moulded with a chemically resistant epoxy. A ‘kick and drop’ electronics assembly is moulded into the coil of all DC variants to reduce electrical power consumption. In combination with a plug to DIN EN 175301-803 Form A, the valves satisfy degree of protection IP65 – and NEMA 4X when combined with a stainless steel body.
Servo-assisted diaphragm valve up to DN50
Fix-coupled diaphragm opens without differential pressure
Vibration-proof, block screwed coil system
Energy-saving power reduction for all DC variants
For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.
The 0290 valve is a servo-assisted diaphragm valve of the S.EV series. The valve opens without differential pressure. The opening process is facilitated by the fix coupling of the diaphragm to the magnetic core. The integrated ‘soft-kick’ function ensures gentle opening. Various diaphragm materials are available depending on the actual application. Stainless steel body variants complete the offering. The solenoid coils are moulded with a chemically resistant epoxy. A ‘kick and drop’ electronics assembly is moulded into the coil of all DC variants to reduce electrical power consumption. In combination with a plug to DIN EN 175301-803 Form A, the valves satisfy degree of protection IP65 – and NEMA 4X when combined with a stainless steel body.
Servo-assisted diaphragm valve up to DN50
Fix-coupled diaphragm opens without differential pressure
Vibration-proof, block screwed coil system
Energy-saving power reduction for all DC variants
For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.
Enquiry for Bürkert Type 0290 Servo-assisted diaphragm valve
Please complete the short form below:
