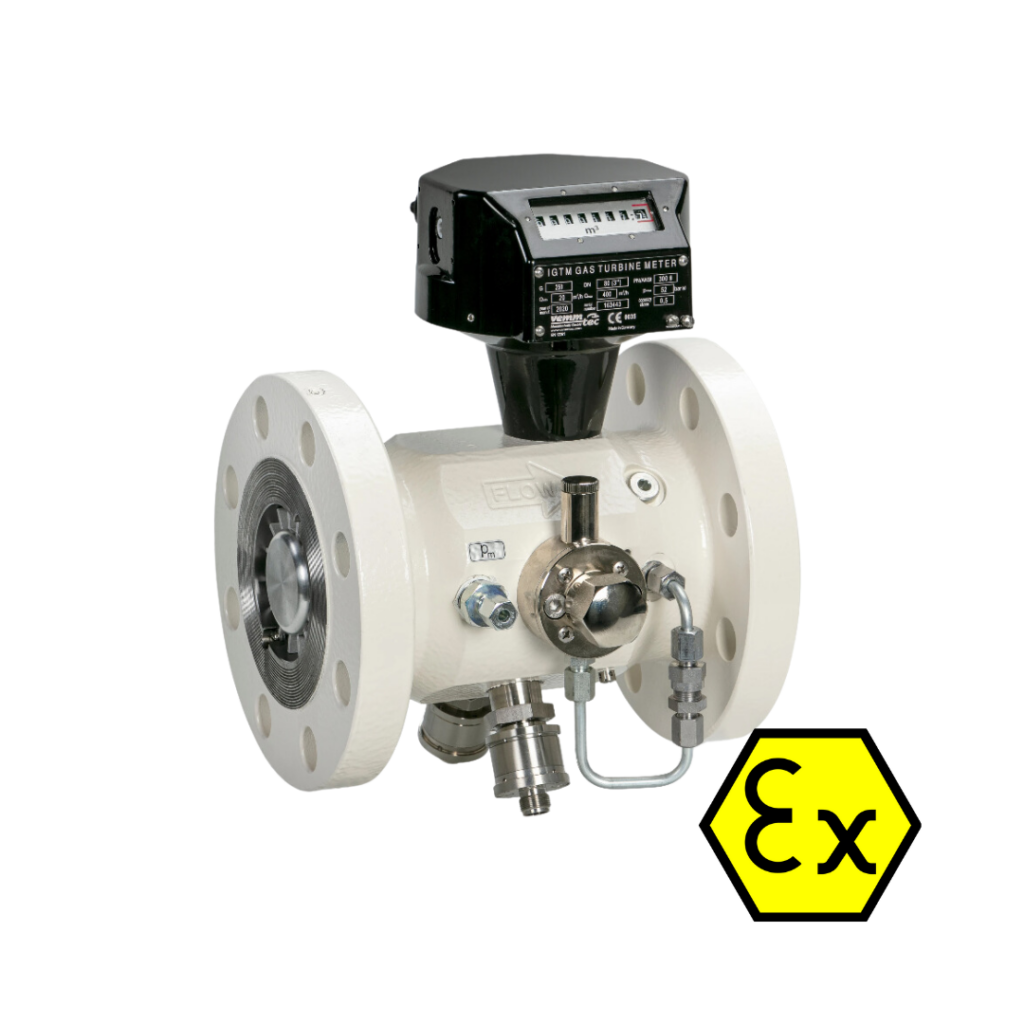

Vemmtec IGTM-CT Turbine Gas Meter Custody Transfer

Vemmtec IGTM-CT Turbine Gas Meter Custody Transfer

Precise and perfected for custody transfer measurements with all relevant nominal sizes, flow rates and flanges – conform and approved according to all relevant standards such as 2014/32/EU (MID) according to EN 12261, 2014/68/EU (PED), 2014/34/EU (ATEX) and many more.
Features;
• MID approval according to EN 12261 for custody transfer
• High measuring accuracy
• Repeatability 0.1% and better
• Integrated flow straightener
• Meter sizes G 40 to G 10,000
• Measuring range 5 to 16,000 m³/h
• Nominal sizes DN 50 (2″) to DN 500 (20″)
• Design pressure 0 to 102 bar(g)
• Flange designs PN 10 – 100 and ANSI 150# – 600#
• Temperature range: -25°C to +55°C (MID) or rather -20°C to +60°C (PED)
• By standard 1 LF- and 1 HF-Sensor installed at index head; up to 2 LF- and 2 HF-Sensors possible (option)
• Up to 2 integrated thermowells at the meter body (option)
• Up to 2 integrated HF-Sensors at the meter body (option)
• Absolut-Encoder (option)
• Magnetic tamper switch (option)
• Mounting of PTZ-BOX 5.0 Electronic Volume Corrector on top (option)
• Suitable for natural gas, pressured air, butane, biogas, nitrogen and other gases
