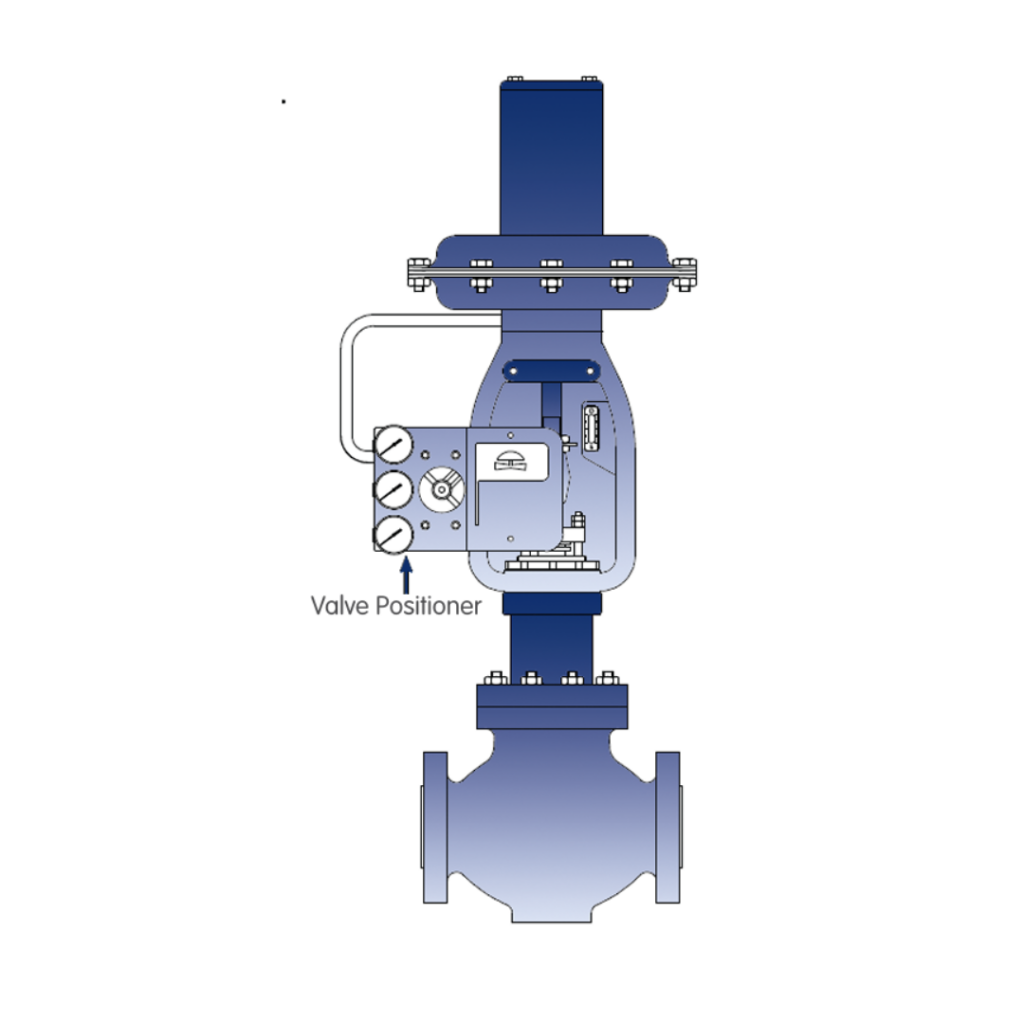

Non-standard controller output – The positioner is used to operate a valve with 3-15 psi spring range when controller signal is other than 3 –15 psi.
Non-standard actuator spring range – The positioner is used to operate valves having non standard actuator spring ranges by controllers having the standard 3-15 psi signal pressure.
Remote valve location – When air operated control valves are located far from control instrument, positioners will reduce lag, thereby speeding up valve operation.
Split range – Some processes require the dual or sequential operation of two to three control valves by a single controller with a 3-15 psi output signal range.
Improves all performance – When process lags necessitate the use of wide controller proportional band, the positioner provides an exact means of making the control valve responsive to infinitely small changes in controller output pressure.
Model
PVP-1 Single Acting – Direct Action, PVP-2 Single Acting – Reverse Action, PVP-3 Double Acting – Direct Action
Supply Connection
1 /4” NPT (F)
Supply Air Pressure
1.4 To 3.5 kg/cm2 (Standard.) 5.0 kg/cm2 (Maximum)
Input
0.2 – 1.0 kg/cm2 (Standard)
Hysteresis
Within ± 1% of FS
Linearity
Within ± 1% of FS
Dead Band
Within 0.1% of FS
Stroke Speed (max)
10mm/sec
Stroke
14 mm to 100mm
Air Consumption
7.0 NL / Min (Normal.)
Air Flow Capacity
200 NL / Min (Maximum.)
Housing
Die cast aluminum to LM – 6
Internals & Linkage
AISI 304
Diaphragm
Nitrile / Neoprene with nylon fabric reinforcement
Non-standard controller output – The positioner is used to operate a valve with 3-15 psi spring range when controller signal is other than 3 –15 psi.
Non-standard actuator spring range – The positioner is used to operate valves having non standard actuator spring ranges by controllers having the standard 3-15 psi signal pressure.
Remote valve location – When air operated control valves are located far from control instrument, positioners will reduce lag, thereby speeding up valve operation.
Split range – Some processes require the dual or sequential operation of two to three control valves by a single controller with a 3-15 psi output signal range.
Improves all performance – When process lags necessitate the use of wide controller proportional band, the positioner provides an exact means of making the control valve responsive to infinitely small changes in controller output pressure.
Model
PVP-1 Single Acting – Direct Action, PVP-2 Single Acting – Reverse Action, PVP-3 Double Acting – Direct Action
Supply Connection
1 /4” NPT (F)
Supply Air Pressure
1.4 To 3.5 kg/cm2 (Standard.) 5.0 kg/cm2 (Maximum)
Input
0.2 – 1.0 kg/cm2 (Standard)
Hysteresis
Within ± 1% of FS
Linearity
Within ± 1% of FS
Dead Band
Within 0.1% of FS
Stroke Speed (max)
10mm/sec
Stroke
14 mm to 100mm
Air Consumption
7.0 NL / Min (Normal.)
Air Flow Capacity
200 NL / Min (Maximum.)
Housing
Die cast aluminum to LM – 6
Internals & Linkage
AISI 304
Diaphragm
Nitrile / Neoprene with nylon fabric reinforcement
