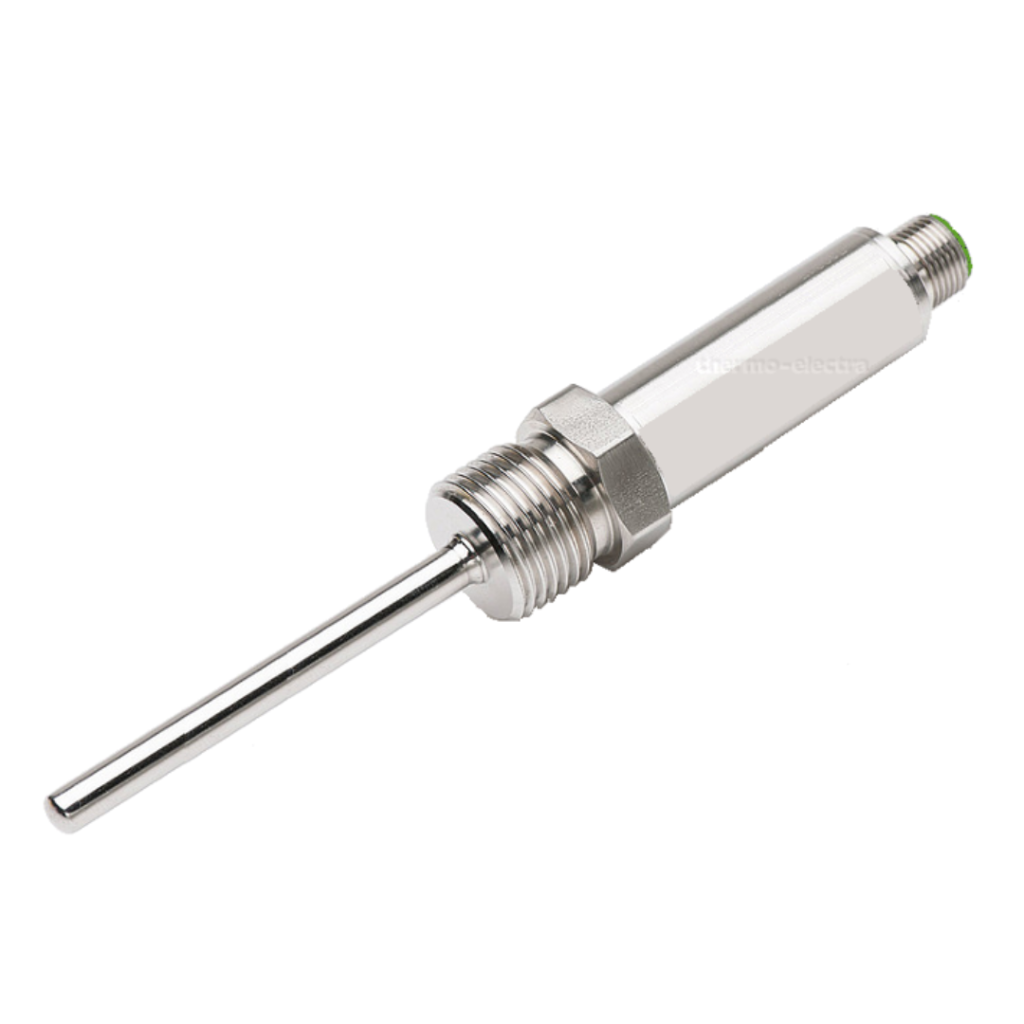

Thermo-Electra RTX 6060 RTD with integrated transmitter

Product Code: RTX6060

Thermo-Electra RTD sensors with cable or plug such as Pt100 sensors are made in all sizes starting from 0.5 mm. Both standard and high vibration resistant versions in single and duplex in 2, 3 and 4 wire system. You can select from a wide range of designs from quick connect type to transition style. We offer glass, ceramic, wire wound and thin film sensors.

Features
Downloads

Construction	Closed end tube with welded bottom. Liquid and gas tight.
Material	SS 316Ti – (Wst 1.4571) standard, other materials possible
Insertion length	Min. 40mm, max. 1000mm , to be specified
Diameter	3.0 mm or 6.0 mm standard, other diameters possible

Ingress protection	IP 67 according to DIN 60529 when plugged in
Process pressure max.	100 bar (at L= 100mm / +20°)
Response time	T50 = <1.0 s; T90 = <2,0 s depending on the process connection)
Screwed	1/4″NPT, 1/2″ NPT, 3/4″ NPT, 1/4″BSP, 1/2″ BSP or M20x1.5
Flanged	Flanged TRI-CLAMP®, Micro-Clamp Tri-Clamp, Milk coupling DIN 11851 or Varivent®

Measuring range	To be specified
Sensor break detection	Upscale or downscale, to be specified
Sensor type	Single Pt100
Connection	2- or 3-wire system
Sensor limit (standard)	-30 / +300°C other limit can be specified (transmitter part 85°C max.)
Sensor accuracy	According to IEC 60751 Cl. B or A
Output	Loop powered 4-20mA at 8 – 35Vdc, M12 connector, 4 pins
Transmitter measuring range	-200 / 650°C, min span 40°C
