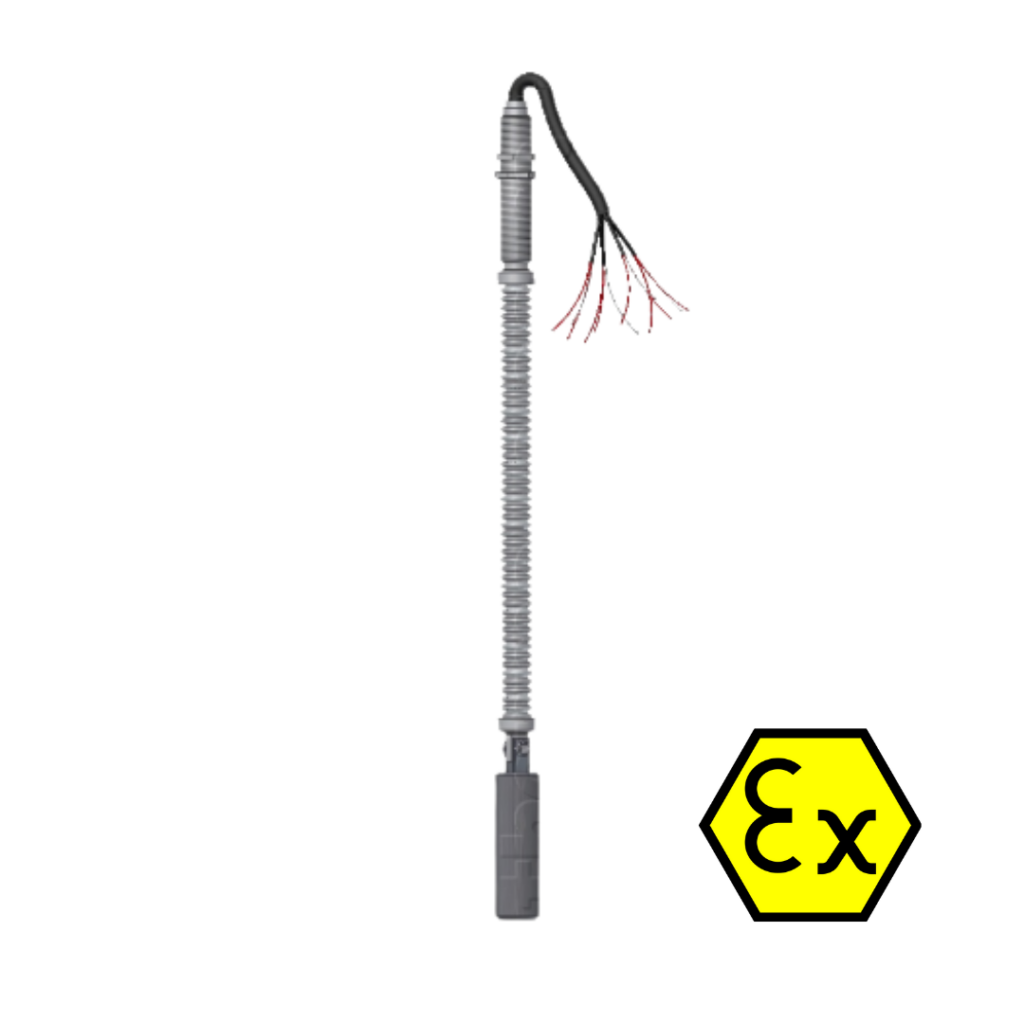

Thermo-Electra ML7090 Multi spot resistance thermometer
Product Code: ML7090
Manufacturer: Thermo-Electra
Thermo-Electra uses precision Pt100 and Pt1000 wire wound detectors to EN60751, ceramic or glass encapsulated and thin film detectors for its resistance thermometers. We have solutions for laboratories, general machinery and food industry, chemical and petrochemical industries. Further a complete line of sensors with standard “DIN” constructions are made with an interchangeable insert, for easy replacement and can be supplied with a built-in two-wire 4-20mA transmitter and hazardous area approved, ATEX and IECEx certified temperature-sensors, single and multipoint for zone 0,1, 2 and 21, 22 with Exi, Exe, Exd, Ext, Exce (Exna) approvals and can be fitted with an integral head-mount transmitter.
Multi spot thermometer for bulk stored liquids, food, crude oil, Bitumen, Chemicals and refined liquids.
Junction box aluminium or stainless steel also possible in Ex version. Temperature transmitters, standard or Ex version. 3Kg Anchor weight, Flange connection, other temperature limits and Ex version. This datasheet is purely indicative, build-up of model code may vary from this datasheet.
Construction Flexible convoluted gas-tight tube
Material Stainless steel 316 standard, other materials possible
Design Gas and liquid tight. Screwed adjustable flange connection max. 2bar @100°C. Otherwise fixed welded to flange.
Tube diameter 19mm standard, other diameters possible
Process connection M25 or 1/2″BSPP standard, other threads possible
Temperature range -20 / +200°C
Cable 3000mm weatherproof IP65 sealed cable standard, other lengths possible
Type Wire wound precision Pt100 detectors
Vibration proof superior class
Accuracy According to IEC 60751 Cl. B, A or AA
