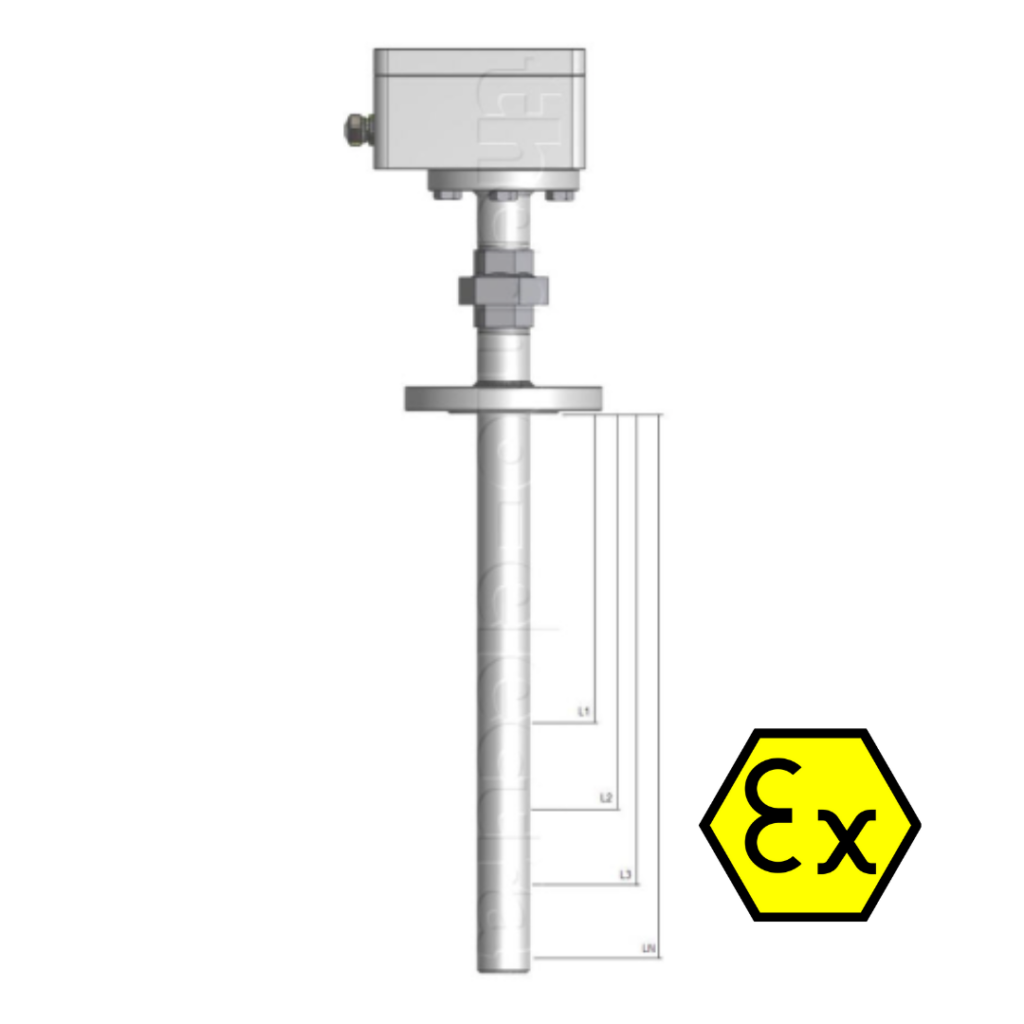

Thermo-Electra ML7038 Multi-Level Thermocouple and Pt100 Assemblies
Product Code: ML 7038
Manufacturer: Thermo-Electra
Thermo-Electra designs and produces thermocouples and uses heat-resistant steel and ceramic tubes for glass, metal, and brick making factories. Stainless steel-protected sensors are most used in laboratories, general machinery and the food industry, and vibration-resistant sensors for bearing measurements and diesel engines. Our thermocouples can be supplied with a certificate from Lloyds Register, Rina, Buro Veritas etc. Further, a complete line of sensors with standard “DIN” constructions are made with an interchangeable insert, for easy replacement. Also most of our thermocouples are available in ATEX or IECEx version for Exe, Exia, Exna/Exce, Exd, Extb for zones 0, 1, 2 and 20, 21, 22.
| Design | |
| Designed to measure temperatures on serveral levels | |
| Model | |
| Model ML 7038 | |
| Protection tube | |
| Construction | Closed-end tube |
| Material | Customer to specify |
| Process connection | Flanged ( Optional threaded ) |
| Material | Customer to specify |
| Flange type | Customer to specify |
| Connection box | |
| Type | Weatherproof IP 65 |
| Material | Polyester, Stainless steel, or coated aluminium |
| Cable entry | One or more |
| Construction | Standard or explosionproof to ATEX |
| Extension | |
| Type | Nipple – union – nipple |
| Material | Stainless steel or galvanized steel |
| Elements | |
| Type | Mineral insulated single or duplex sensing element |
| Positions L1 to Ln | Customer to specify |
| Thermocouple | K, T, J, E, N, U or L |
| Pt100 | Vibration proof Superior class Pt100 detectors |
| Accuracy | |
| Thermocouples | According IEC 584-2 class 1 |
| Pt100 | Class A to IEC 751 or 1/10 Din. |
| Construction | |
| Several measuring constructions are possible, see separate datasheets. |
