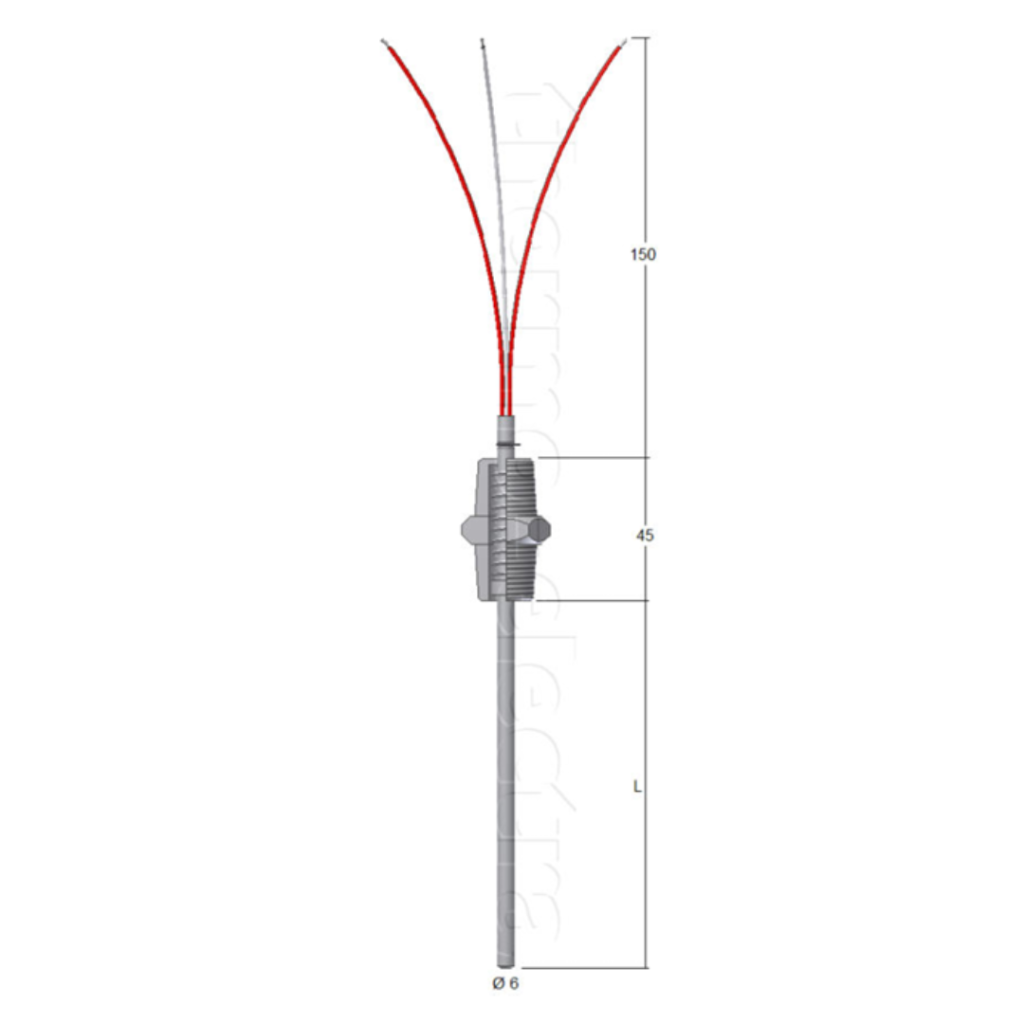

Thermo-Electra MI 2039 Springloaded resistance thermometer
Click to enlarge

Thermo-Electra MI 2039 Springloaded resistance thermometer

Thermo-Electra MI 2039 Springloaded resistance thermometer

Product Code: MI2039

Manufacturer: Thermo-Electra


Thermo-Electra RTD sensor with connection head are resistance thermometers specifically designed for heavy-duty temperature sensing applications like ovens, machines and industrial environments where their robust construction ensures a prolonged sensor life. These RTD’s are built with a Pt100 detector to EN60751 and are available in accordance with IEC 751 Class A, B and 1/10B. An optional two-wire head-mounted transmitter can be supplied and also ATEX certification for areas with the risk of an explosion, zone 0, 1, 2, 21 and 22.

Construction Mineral insulated
Material SS 316 – (Wst 1.4401) standard, other materials possible
Insertion length Customer to specify
Diameter 6.0mm standard, other diameters possible
Process connection M20x1.5, 1/2″BSP (G1/2″), 1/2″NPT or other threads possible
Mechanical For M20x1.5, 1/2″BSP (G1/2″), 1/2″NPT or other threads possible
Electrical Insulated PTFE wires 180°C, 150 mm
Construction Springloaded insertion, length 25 mm
Detector Single or Duplex Pt100
Accuracy According IEC 60751 Cl. B, A or AA
Style / Connection 3-wire system standard, 4-wire system optional
Range -20 / +400°C standard, -220 / +600°C optional
Insulation material Mineral insulated (MgO)
Testing Tested 500 Vdc @ 20°C
Insulation resistance Minimum 100 Mohm
Datasheet Download
