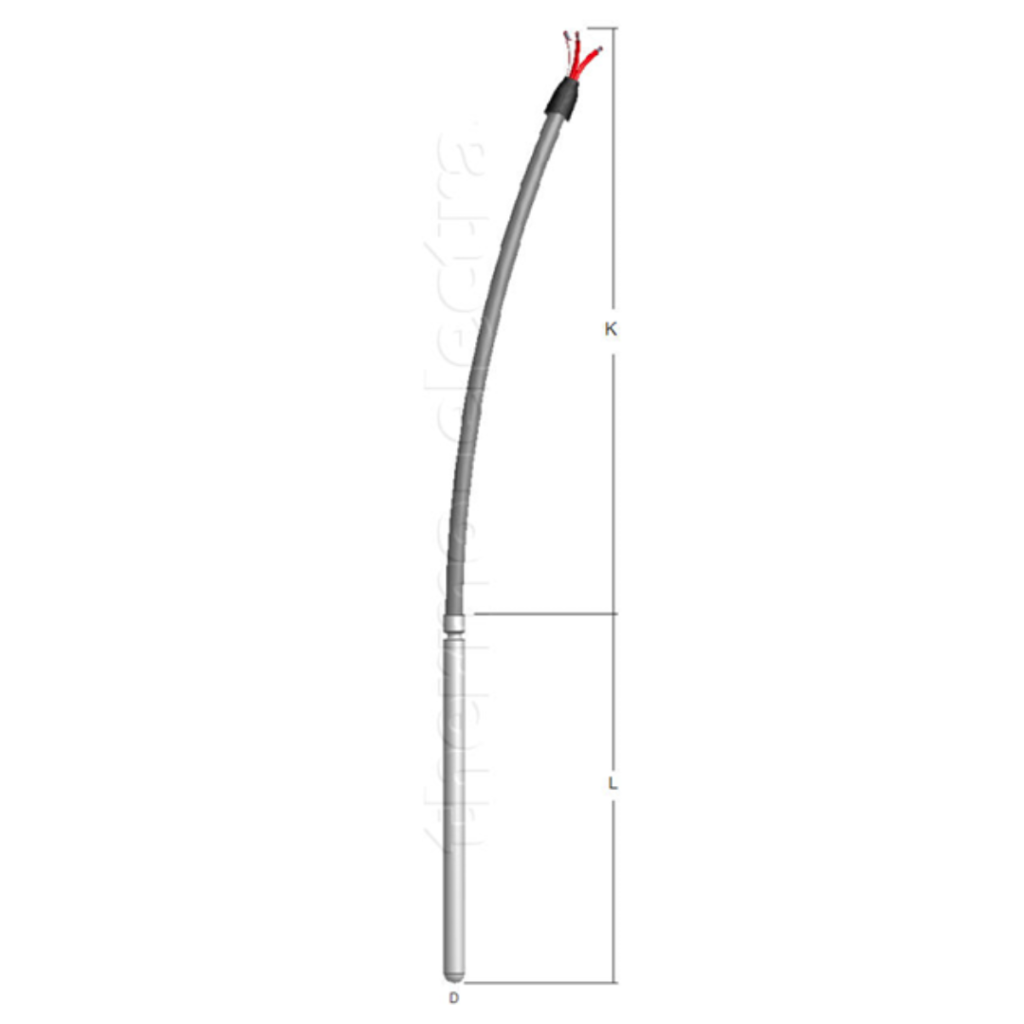

Thermo-Electra KE 2084 General purpose resistance thermometer

Product Code: KE2084

Thermo-Electra RTD sensors with cable or plug such as Pt100 sensors are made in all sizes starting from 0.5 mm. Both standard and high vibration resistant versions in single and duplex in 2, 3 and 4 wire system. You can select from a wide range of designs from quick connect type to transition style. We offer glass, ceramic, wire wound and thin film sensors.

Features
Downloads

Construction	Closed-end tube
Material	SS 316 – (Wst 1.4401) standard, other materials possible
Diameter	Customer to specify
Standard diameters	2.0, 3.0, 3,2, 4.0, 4,8 or 6.0mm, customer to specify
Length	Customer to specify
Ingress protection	IP65 sealed cable junction

Silicone rubber, Teflon FEP or PVC, customer to specify
Lead wire length	Customer to specify

Single or Duplex Pt100
Accuracy	According IEC 60751 Cl. B, A or AA
Style / Connection	3-wire system standard, 4-wire system optional
Range	Standard -20 / +400°C, optional -220 / +600°C
Testing	Tested at 500 Vdc @ 20°C
Insulation resistance	Minimum 100Mohm

Datasheet
