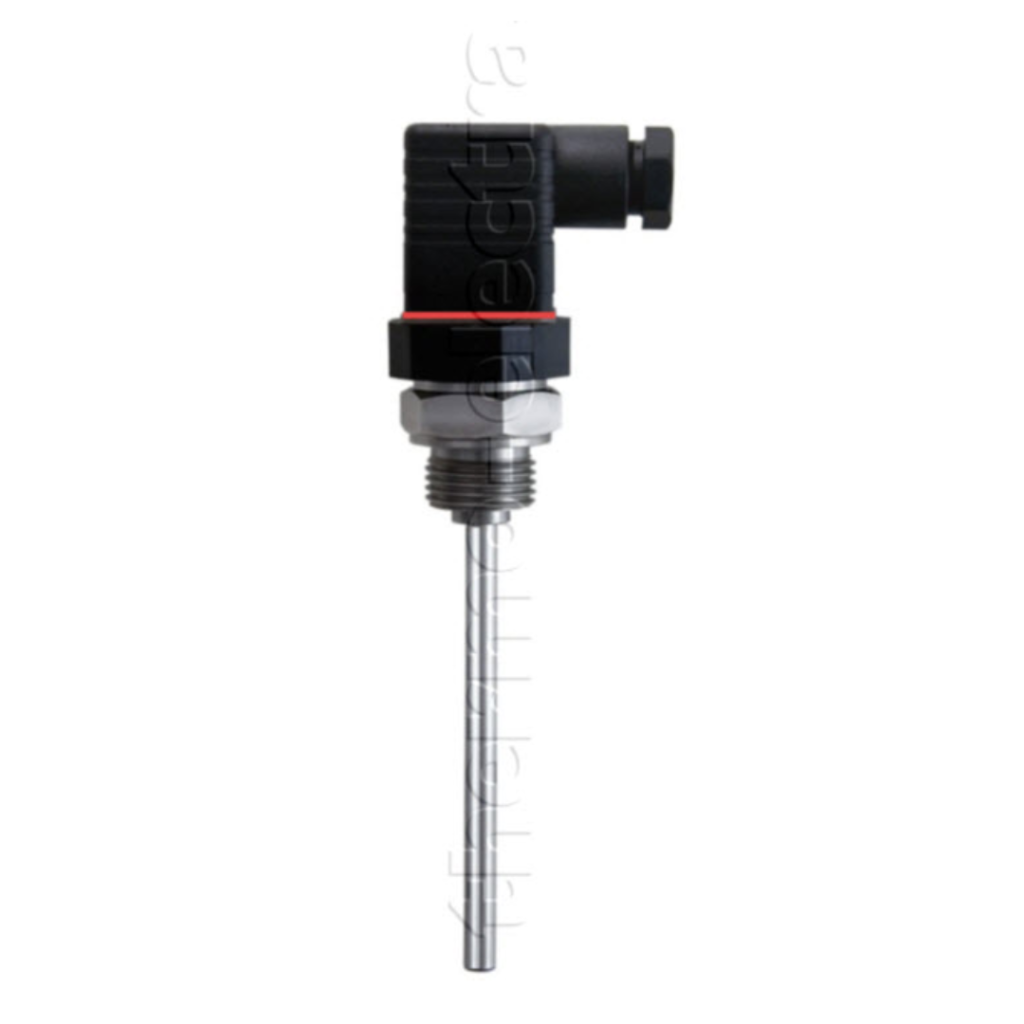

Thermo-Electra DWR 6000 Threaded Pt100 sensor with valve connector

Product Code: DWR6000

RTD sensors with cable or plug such as Pt100 sensors are made in all sizes starting from 0.5 mm. Both standard and high vibration resistant versions in single and duplex in 2, 3 and 4 wire system. You can select from a wide range of designs from quick connect type to transition style. We offer glass, ceramic, wire wound and thin film sensors.

Features
Downloads

Construction	Welded protectiontube, liquid and gas tight
Material	SS 316 – (Wst 1.4401) standard, other materials possible
Insertion length	50mm to 400mm
Diameter	6.0mm standard, other diameters possible
Process connection	1/2″BSP (G1/2″) standard, other threads possible
Maximum process pressure	Suitable up to 40 Bar

Valve connector	Connector according to DIN EN 175-803 (Hirschmann GSP or equivalent (max. 120°C at the connector)
Ingress protection	IP65

Type	Single Pt100
Measuring range	-30 / +180°C
Measuring current	1mA
Accuracy	According IEC 60751 Class B standard, other classes possible
Connection	2 wires

Insulation test	Performed with 250Vdc @ 20°C
Insulation minimum	>100 MOhm

Sensor connection	3 or 4-wire system
Extended measuring range	-50 / +260°C
High temperature versions	-30 / 600 °C
