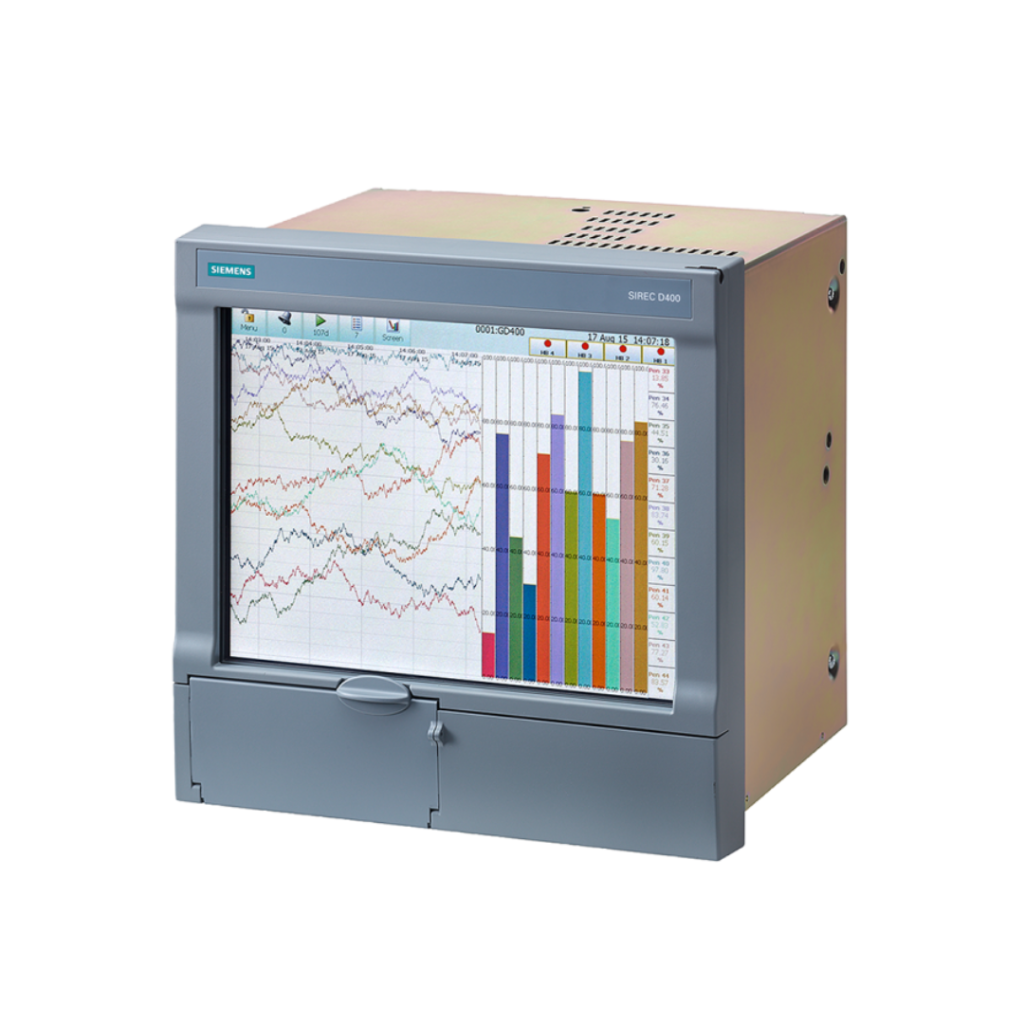

Siemens SIREC D400 Display Recorder

Product Code: 7ND4461

Manufacturer: Siemens

Siemens SIREC D400 is a high-end 300 mm x 300 mm XGA display recorder with 16 to 48 analog channels and up to 48 digital channels. The wide range of SIREC D products accommodates continuous monitoring, system maintenance, process optimization and troubleshooting requirements.

Features
Downloads

Benefits

Fast scanning rate of 20 / 100 / 200 / 500 msec
From 1 GB up to 4 GB internal data buffer
Accuracy: 0.1% typical – T/C
Transmitter power supply 24Vdc
Comprehensive math functions
Interfaces: Ethernet, RS 485, USB, slot for CD card
Data logging via USB interface or by SD card
Fast operation through a touchscreen
Configuration on the device or through the SIREC D manager or server software
NEMA 3/IP65 type front face protection; NEMA 4X/IP66 available as an option
Firmware options individually selectable through a flexible credit system

Datasheet	Download
Instruction Manual	Download
MP20 Catalogue	Download
