Müller Shear Force Transducer (SKA8C)
Click to enlarge

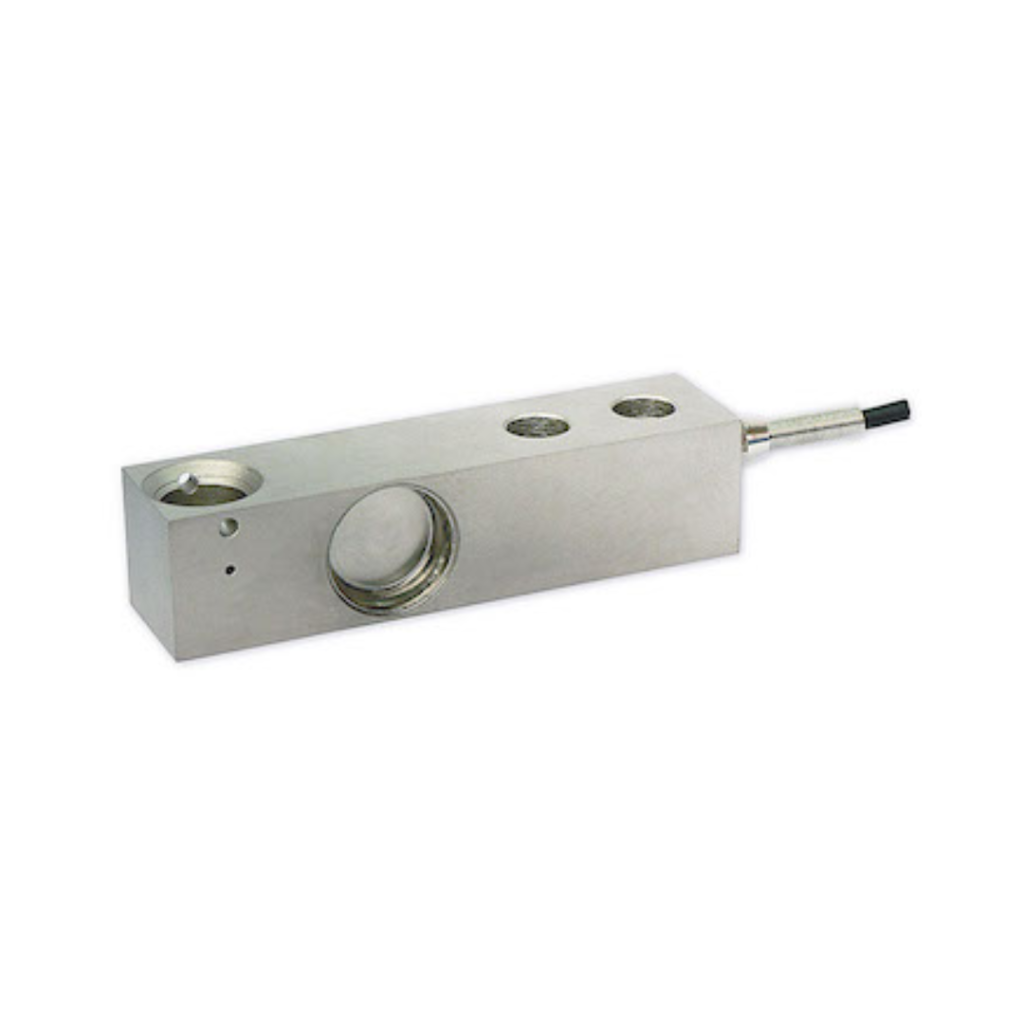

Müller Shear Force Transducer (SKA8C)

Müller Shear Force Transducer (SKA8C)

Product Code: SKA8C

Manufacturer: Müller


The Müller Shear Force Transducer (SKA8C) is suitable for applications in all areas which make measuring of weights necessary, for example electronical vehicle scales, platform scales, funnels, silos and in theatre stage technology. The load cells are manufactured from high quality materials and are both flexible and robust.

  • Material: alloy steel / stainless steel / aluminium alloy
  • Rated load: 20…10000 kg
  • Output: 2 mV/V
  • Supply voltage: 10 VDC
  • Accuracy: +/- 0,02% FS
  • Degree of protection: IP66 / IP67
  • Connection: 3 m / 6 m cable, 4-wire shielded
Datasheet Download
Instruction Manual Download
