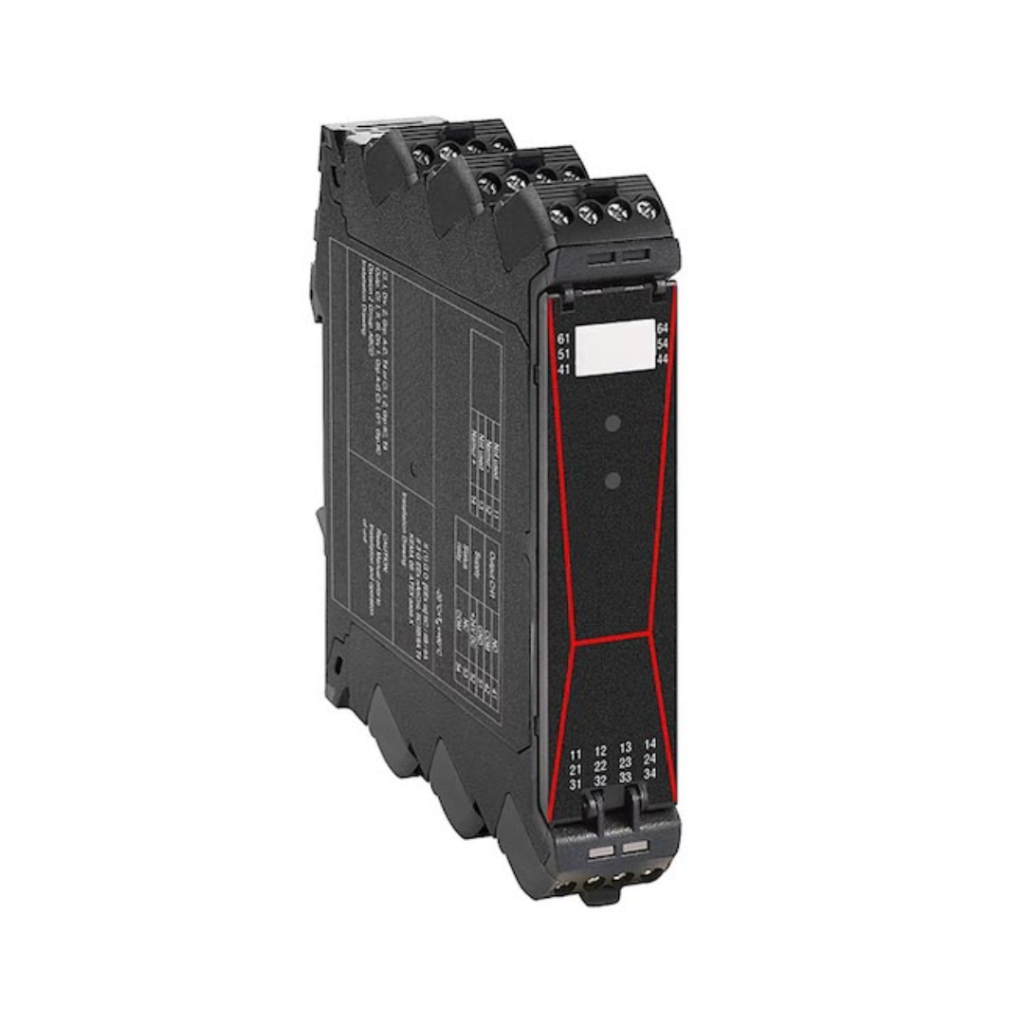

Müller Digital Strain Gauge Amplifier (DR-ADLM)
Click to enlarge

Müller Digital Strain Gauge Amplifier (DR-ADLM)

Müller Digital Strain Gauge Amplifier (DR-ADLM)

Product Code: DR-ADLM

Manufacturer: Müller

Enquire

The Müller Digital Strain Gauge Amplifier (DR-ADLM) is suitable for nearly all applications where strain gauge sensors are used. It can be adapted easily to local conditions via its interface. Available outputs for further processing are standard signal and RS485.

  • Input Strain gauge: up to 2 full bridges, 0(4)…20 mA, 0…10 V
  • Input sensitivity: 0,1…5 mV/V
  • Analog output: 4…20 mA / 0…10 V
  • Voltage supply: 24 VDC
  • Resolution: 12 / 14 / 15 / 16 bit
  • Combined error: 0,2% of end scale value
  • Optionally: interface
  • Degree of protection: IP20
  • Adjustment: via RS232 or USB interface
Datasheet Download
Instruction Manual Download
