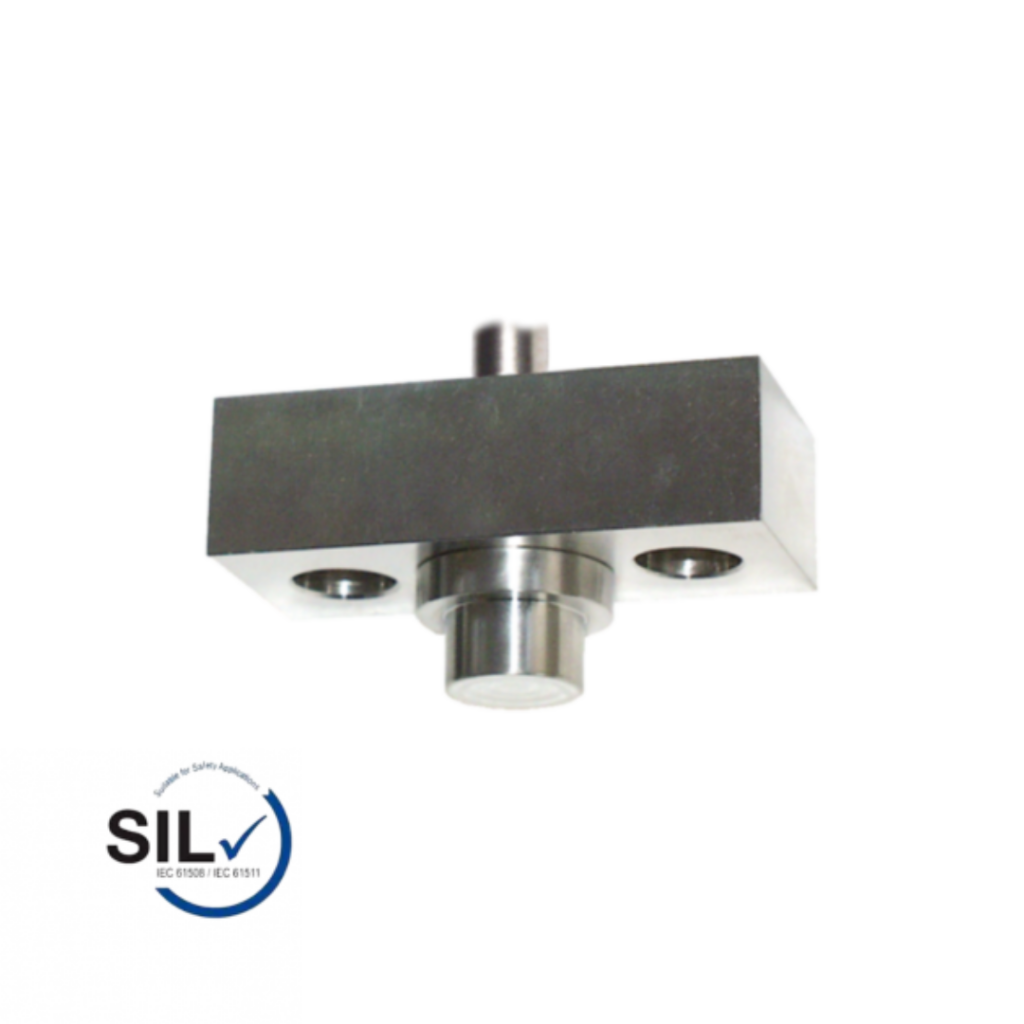

Labom Diaphragm Seal for Homogenisers DD8020
Click to enlarge

Labom Diaphragm Seal for Homogenisers DD8020

Labom Diaphragm Seal for Homogenisers DD8020

Product Code: Labom Diaphragm Seal for Homogenisers DD8020

Manufacturer: Labom

Enquire

The Labom DD8020 Diaphragm Seal for Homogenisers is suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The diaphragm seal is used for high pressure applications and for high viscous media.

Options

  • Material certificate acc. to EN 10204-3.1
  • Used for high pressure applications and for highly viscous media
  • Flush-mounted separating diaphragm of stainless steel
  • Nominal pressure PN 600 and PN 1000
  • Clamping flange, adjustable
  • Volume optimized diaphragm base
Datasheet Download
SIL Certificate Download
