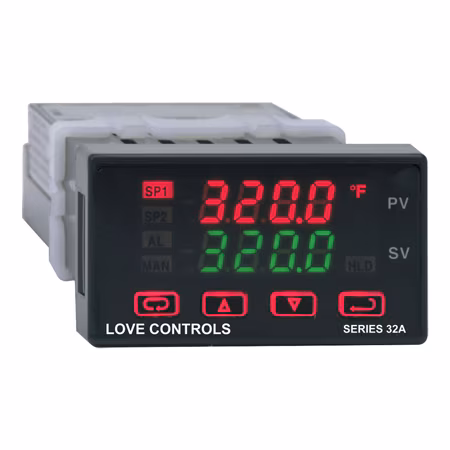

Dwyer Omega – Series 32A Compact 1/32 DIN Temp/Process Controllers, Dual Display & Universal Input
Product Code: Series 32A
Manufacturer: Dwyer Omega
The Series 32A Temperature/Process Controllers set a new standard in 1/32 DIN power, flexibility and value. This group of controls offers the highest level of features in the most compact industry standard size. Ease of use is assured with the world’s first dual display 1/32 DIN temperature/process controllers.
The Series 32A offers universal input (10 thermocouple types, 4 RTD types, voltage and current), single or dual set point, alarm (optional), Fuzzy Logic, Self-Tune, Peak/Valley indication, Percent Output indication and Heater Break protection. Auto/Manual capability and 16 Segment Ramp and Soak with adjustable time base are also offered. Process protection features include open sensor protection, shorted sensor protection, input rate of change protection and loop break protection.
Options for the 32A include Process Output Retransmission (voltage or current), Remote Analog Set Point (voltage, current resistance), RS-485 Serial Communication and 2-Stage Set Point.
Accuracy
± 0.25% span ± 1 least significant digit
Compliance
CE, UL
Display Note
Two 4-digit, 7 segment, 0.259 high (6.35 mm) LEDs
Display Type
LED
Enclosure Ratings
IP66, NEMA Type 4X
Input Control Signal
0 to 20 mA
Input Type
Thermocouple, RTD, DC Voltage or DC Current
Memory Backup
Non-Volatile
Mounting Orientation
1/32 DIN
Number of Digits
4
Operating Temperature, Max
131 °F
Operating Temperature, Min
14 °F
Power Consumption
max 5 VA
RTD Input Range
JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F
Supply Power Note
100 to 240 VAC, nominal, +10 – 15%, 50 to 400 Hz. single phase; 132 to 240 VDC, nominal, +10 – 20%
Supply Power Type
AC/DC
Supply Voltage
100 to 240 Vac/132 to 240 Vdc
Temperature Sensor Type
RTD or Thermocouple
Thermocouple Input Range Note
Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F
Voltage Input Range
0 to 5 V, 0 to 10 V
Weight
4 oz
