This water-circulating temperature controller is designed for precise heating and cooling of injection moulds, dies, rolls, and tanks. It supports water and water/glycol solutions up to 250°F (121°C) with power options ranging from 4.5 to 24 kW. Built with durable 125 lb carbon steel and featuring 1 1/4 in NPT male process connections, it operates on 240 or 480V, 3-phase, 60 Hz power.
APPLICATIONS
OMEGA’s CMX Series Circulating Water Temperature Controllers are compact, versatile and completely self- contained water heating and cooling systems. The CMX series products can be used in any application where precision temperature control of a heating and cooling water circulation system is needed. They are particularly useful in the plastics industry as mould temperature controllers.
– Injection Moulding Machines — Thermoplastics and Thermosets
– Platens and Dies
– Rolls, Laminating and Calendering
– Pipeline Heating and Tracing
– Jacketed Vessels and Tanks
The built-in electronic temperature and process controller features separate PID algorithms for heat and cool control modes, dual display of setpoint and process temperatures and simple configuration parameters with alphanumeric cues. Even though these systems are sophisticated and state of the art, they are still easy to use and require very little training to program and operate. Standard NPT threaded piping connections provide for convenient hook up to external piping.

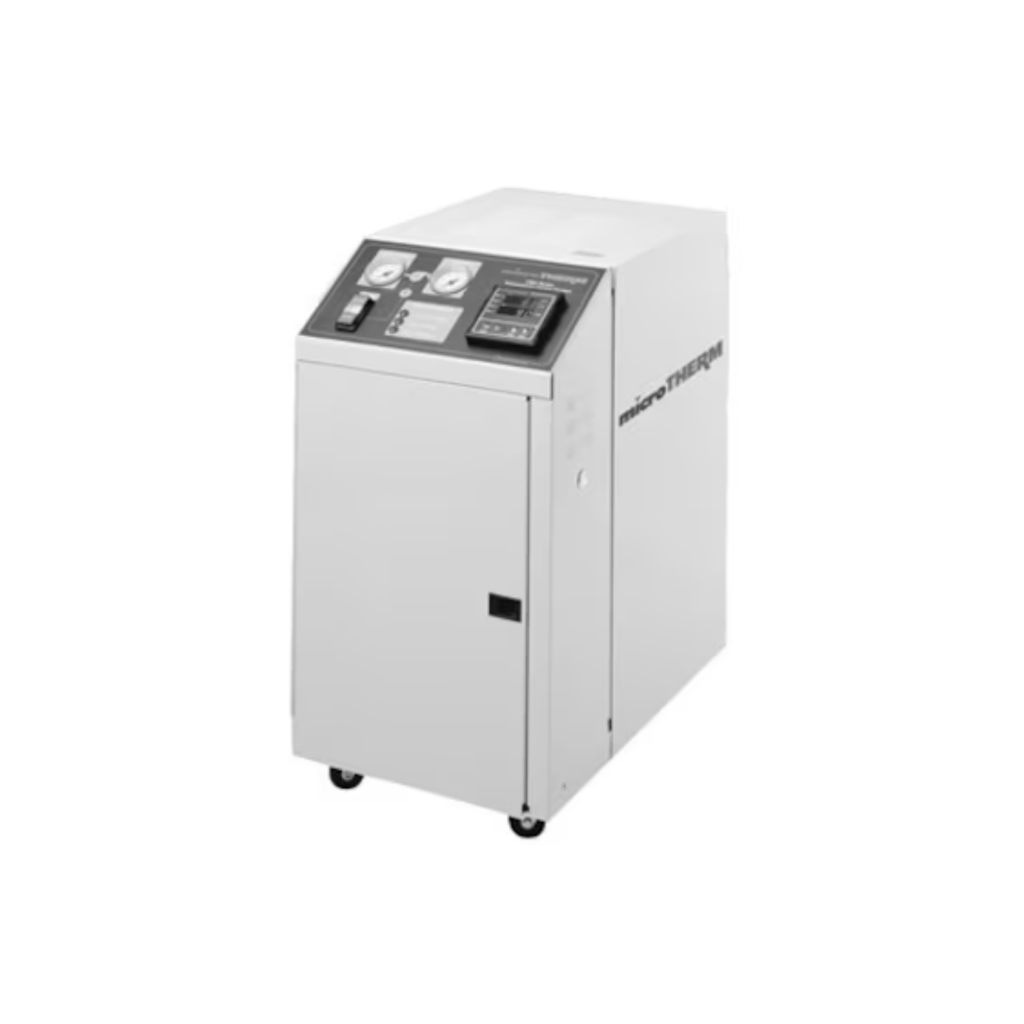

Dwyer Omega – CMX-HEATER Water-Circulating Temperature Controller, Heater/Chiller
This water-circulating temperature controller is designed for precise heating and cooling of injection moulds, dies, rolls, and tanks. It supports water and water/glycol solutions up to 250°F (121°C) with power options ranging from 4.5 to 24 kW. Built with durable 125 lb carbon steel and featuring 1 1/4 in NPT male process connections, it operates on 240 or 480V, 3-phase, 60 Hz power.
APPLICATIONS
OMEGA’s CMX Series Circulating Water Temperature Controllers are compact, versatile and completely self- contained water heating and cooling systems. The CMX series products can be used in any application where precision temperature control of a heating and cooling water circulation system is needed. They are particularly useful in the plastics industry as mould temperature controllers.
– Injection Moulding Machines — Thermoplastics and Thermosets
– Platens and Dies
– Rolls, Laminating and Calendering
– Pipeline Heating and Tracing
– Jacketed Vessels and Tanks
The built-in electronic temperature and process controller features separate PID algorithms for heat and cool control modes, dual display of setpoint and process temperatures and simple configuration parameters with alphanumeric cues. Even though these systems are sophisticated and state of the art, they are still easy to use and require very little training to program and operate. Standard NPT threaded piping connections provide for convenient hook up to external piping.
Enquiry for Dwyer Omega – CMX-HEATER Water-Circulating Temperature Controller, Heater/Chiller
