Compact positioner for integrated mounting on pneumatically operated process valves. Remote setpoint adjustment via a 4-20 mA signal or through AS-Interface. Without instrinsic compressed air consumption during steady state.
A contact-free analog position sensor measures the position of the valve spindle.
Simple installation through automatic tune function and setting through DIP-switch:
Close tight function
Characteristic curves selection
Reversal of effective direction
Switching manual /automatic operation
Binary input
Additional parametrisation options are possible through DTM devices.
A software interface can be used for, amongst others, linearisation of the operation characteristics by using free programmable fixed points. The valve position indication is shown through LED components.
As an option an analogue position feedback can be integrated.
Digital electropneumatic Positioner for the integrated mounting on process control valves.

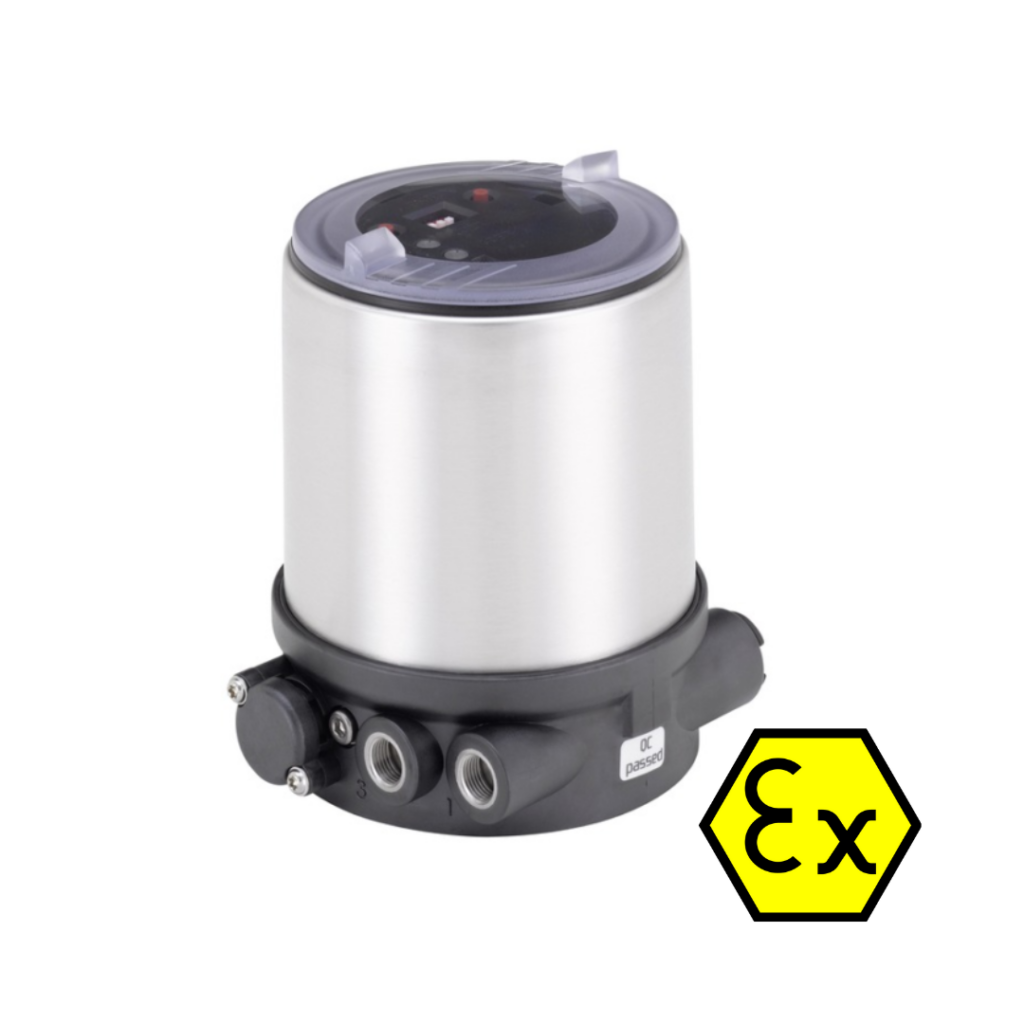

Bürkert Type 8694 Digital electropneumatic positioner for intergrated mounting
Compact positioner for integrated mounting on pneumatically operated process valves. Remote setpoint adjustment via a 4-20 mA signal or through AS-Interface. Without instrinsic compressed air consumption during steady state.
A contact-free analog position sensor measures the position of the valve spindle.
Simple installation through automatic tune function and setting through DIP-switch:
Close tight function
Characteristic curves selection
Reversal of effective direction
Switching manual /automatic operation
Binary input
Additional parametrisation options are possible through DTM devices.
A software interface can be used for, amongst others, linearisation of the operation characteristics by using free programmable fixed points. The valve position indication is shown through LED components.
As an option an analogue position feedback can be integrated.
Digital electropneumatic Positioner for the integrated mounting on process control valves.
