The Bürkert Type 8036 flowmeter is a compact device, specially designed for measuring the flow rate in solid-free liquids, in a variety of applications (water, waste water monitoring, chemical processing, etc.). Type 8036 is available with: – 2 configurable outputs: one transistor output (NPN) and one 4…20 mA current output (2-wire) – 3 configurable outputs: two transistor outputs (NPN/PNP) and one 4…20 mA current output (2-wire) – 4 configurable outputs: two transistor outputs (NPN/PNP) and two 4…20 mA current outputs (3-wire). Type 8036 converts the measured signal, displays different values in different units (if display/configuration module mounted) and computes the output signals, which are provided via one or two M12 fixed connectors. Thanks to 1 or 2 transistor outputs, the flowmeter can be used to switch a solenoid valve, activate an alarm and, thanks to 1 or 2 current outputs, establish one or two control loops.

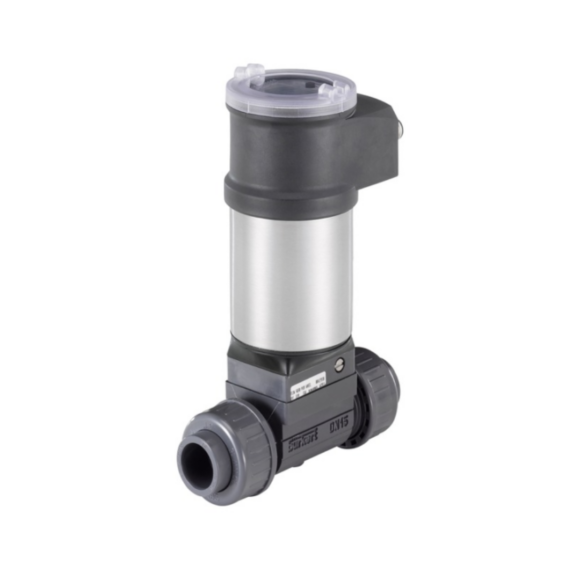

Bürkert Type 8036 – Inline Flowmeter with Paddle Wheel – Element Design
The Bürkert Type 8036 flowmeter is a compact device, specially designed for measuring the flow rate in solid-free liquids, in a variety of applications (water, waste water monitoring, chemical processing, etc.). Type 8036 is available with: – 2 configurable outputs: one transistor output (NPN) and one 4…20 mA current output (2-wire) – 3 configurable outputs: two transistor outputs (NPN/PNP) and one 4…20 mA current output (2-wire) – 4 configurable outputs: two transistor outputs (NPN/PNP) and two 4…20 mA current outputs (3-wire). Type 8036 converts the measured signal, displays different values in different units (if display/configuration module mounted) and computes the output signals, which are provided via one or two M12 fixed connectors. Thanks to 1 or 2 transistor outputs, the flowmeter can be used to switch a solenoid valve, activate an alarm and, thanks to 1 or 2 current outputs, establish one or two control loops.
