Level Measurement Instrumentation FAQs
22 May 2026
Level measurement is one of the most critical applications in process instrumentation industries. Whether in oil and gas, water and wastewater, chemical processing, food and beverage, pharmaceuticals, mining, power generation, or pulp and paper manufacturing, accurate level measurement directly impacts operational safety, production efficiency, inventory management, process control, and regulatory compliance.
From monitoring fuel tanks and chemical reactors to managing slurry vessels and boiler drums, level instruments provide the data needed to maintain stable, efficient industrial processes.
Despite its importance, level measurement remains one of the most misunderstood areas of industrial instrumentation. Engineers, maintenance teams, operators, and procurement professionals frequently ask questions about technology selection, installation practices, accuracy, calibration, reliability, hazardous-area approvals, and troubleshooting.
What Is Level Measurement?
Level measurement refers to the determination of the position of a liquid, solid, slurry, interface, or granular material within a vessel, tank, silo, hopper, reactor, or open channel.
Industrial level measurement systems are used to:
- Prevent tank overflow
- Avoid dry running of pumps
- Control inventory
- Maintain process stability
- Ensure safety compliance
- Improve batching accuracy
- Monitor chemical dosing
- Optimise production efficiency
- Enable automated control systems
Level measurement can be categorised into:
Continuous Level Measurement
Continuous level measurement provides real-time level values across the full measuring range.
Examples include:
- Radar level transmitters
- Ultrasonic transmitters
- Hydrostatic pressure transmitters
- Guided wave radar
- Capacitance probes
- Magnetostrictive transmitters
Point Level Measurement
Point level devices detect whether the material has reached a specific level point.
Examples include:
- Vibrating fork switches
- Float switches
- Conductivity switches
- Rotary paddle switches
- Capacitive switches
- Optical level switches
Why Is Level Measurement Important in Process Industries?
Level measurement is essential because process plants rely heavily on accurate material inventory and process control.
Poor level measurement can cause:
- Tank overflows
- Environmental spills
- Equipment damage
- Production downtime
- Pump cavitation
- Batch inconsistencies
- Safety hazards
- Incorrect inventory reporting
- Product contamination
Accurate level measurement improves:
- Process automation
- Plant safety
- Inventory visibility
- Product quality
- Regulatory compliance
- Operational efficiency
- Maintenance planning
Industries such as pharmaceuticals and food processing also require hygienic level measurement technologies that comply with strict sanitary standards.
What Are the Main Types of Level Measurement Technologies?

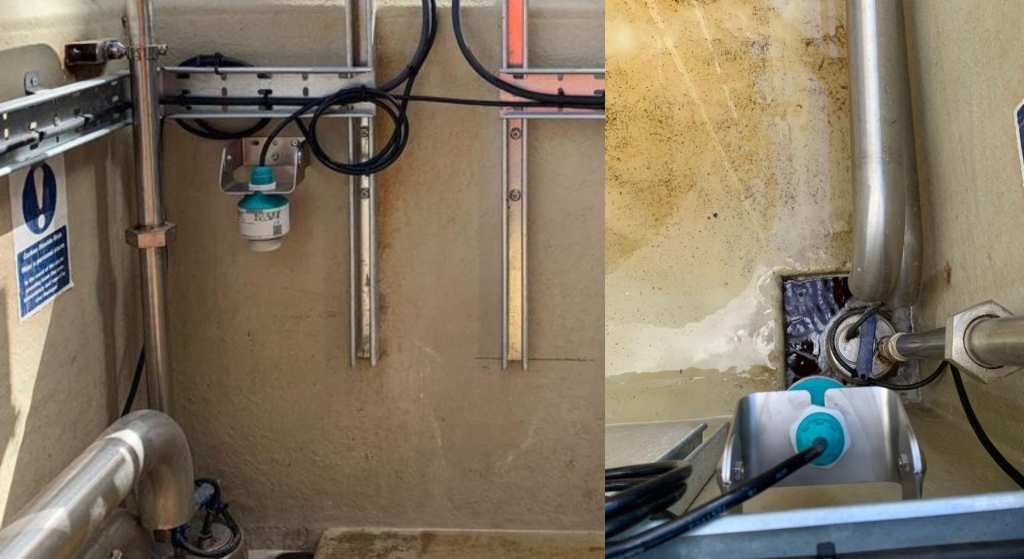

Radar Level Measurement
Radar level transmitters use microwave signals to measure the distance between the transmitter and the product surface.
Advantages
- High accuracy
- Non-contact measurement
- Works in high pressure and temperature
- Suitable for aggressive chemicals
- Minimal maintenance
- Not affected significantly by density changes
Applications
- Chemical tanks
- Crude oil storage
- Boiler drums
- LNG tanks
- High-temperature reactors
Limitations
- Higher initial cost
- Installation considerations for nozzle interference
- Foam and turbulence may affect some applications
Common Radar Frequencies
- 6 GHz
- 26 GHz
- 80 GHz
Modern 80 GHz radar technology provides superior focusing and improved performance in narrow vessels and challenging conditions.
Guided Wave Radar (GWR)
Guided wave radar sends microwave pulses along a probe inserted into the process medium.
Advantages
- Excellent for interface measurement
- Performs well in vapor
- Suitable for small tanks
- Reliable in varying dielectric conditions
- Accurate in turbulent applications
Applications
- Oil-water interface
- Chemical reactors
- Storage vessels
- Pressurised tanks
Limitations
- Probe coating can affect performance
- Requires proper probe selection
- More complex installation compared to non-contact radar
An example of this would be a Beverage Filling Machine Wireless Bridge Application where the machine’s critical functionalities depend on precise measurements obtained from a pressure transmitter and guided wave radar, crucial for maintaining bottle fill levels and product carbonation.
Ultrasonic Level Measurement
Ultrasonic transmitters use sound waves to measure the distance to the product surface.
Advantages
- Non-contact technology
- Cost-effective
- Easy installation
- Suitable for water applications
Applications

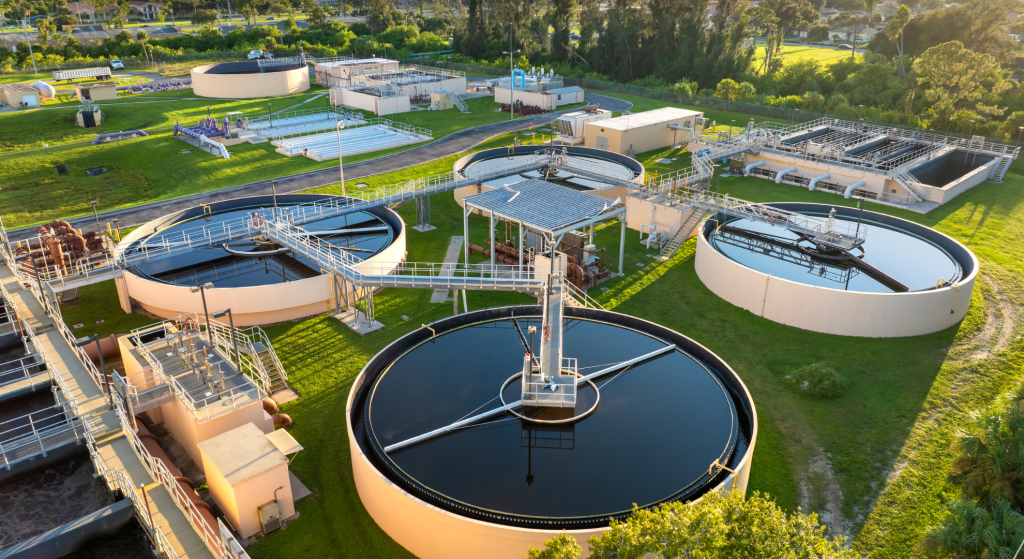

- Water treatment plants
- Open channels
- Wastewater tanks
- Sumps and lift stations
Limitations
- Affected by temperature changes
- Vapor and foam can reduce reliability
- Dust may affect solids applications
- Dead band limitations
Hydrostatic Level Measurement
Hydrostatic level measurement calculates level using the pressure generated by the liquid column.
Formula
Level = Pressure / (Density × Gravity)
Advantages
- Simple principle
- Cost-effective
- Suitable for underground tanks
- Reliable for clean liquids
Applications
- Water tanks
- Chemical vessels
- Bore wells
- Open tanks
Limitations
- Density changes affect accuracy
- Requires compensation in variable density applications
- Not ideal for sticky media
Differential Pressure (DP) Level Measurement
Differential pressure transmitters measure the pressure difference between two points.
Advantages
- Widely used in industry
- Suitable for pressurised vessels
- Good for boiler drum applications
- Reliable for interface measurements
Applications
- Steam drums
- Pressurised vessels
- Distillation columns
- Interface applications
Limitations
- Requires impulse lines
- Maintenance-intensive
- Temperature compensation may be required
- Wet leg systems require proper maintenance
Capacitance Level Measurement
Capacitance instruments detect level changes based on variations in electrical capacitance.
Advantages
- Compact design
- Suitable for liquids and solids
- Can detect interfaces
- Good for point level switching
Applications

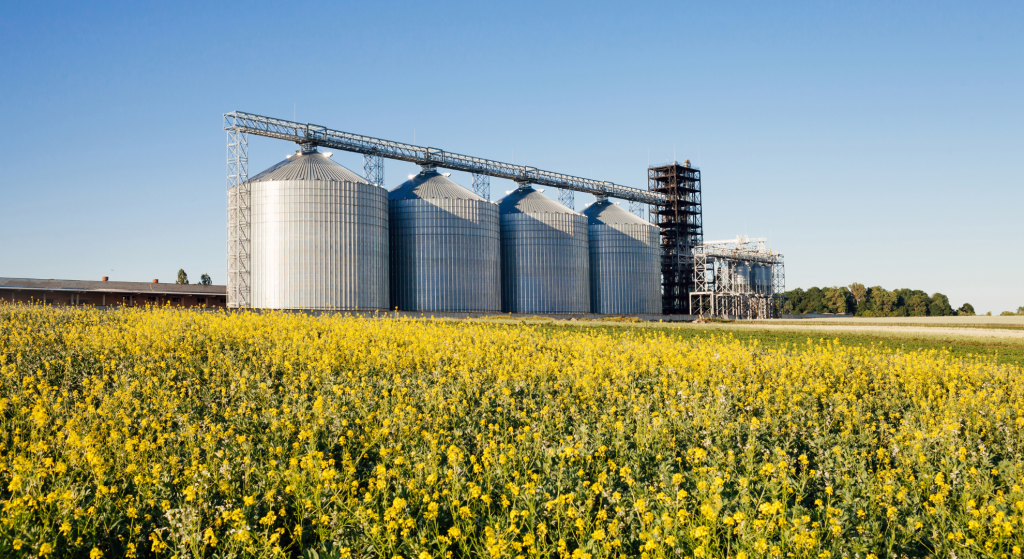

- Powder silos
- Chemical tanks
- Plastic granules
- Conductive liquids
Limitations
- Sensitive to coating
- Dielectric constant changes affect calibration
- Requires proper setup
Float Level Measurement
Float-based systems use buoyancy principles to track liquid levels.
Advantages
- Simple operation
- Low cost
- Easy maintenance
- Proven technology
Applications
- Water tanks
- Diesel tanks
- Small process vessels
Limitations
- Mechanical wear
- Moving parts can fail
- Not suitable for turbulent applications
Vibrating Fork Level Switches
These instruments use a vibrating tuning fork that changes frequency when covered by material.
Advantages
- Reliable point level detection
- Minimal maintenance
- Suitable for liquids and solids
- Immune to many process changes
Applications
- High-level alarms
- Low-level alarms
- Pump protection
- Dry run prevention
Limitations
- Build-up may affect performance
- Extreme coatings require special consideration
How Do You Choose the Right Level Measurement Technology?
Selecting the correct level instrument depends on multiple process factors.
Key Selection Criteria
Process Medium
Understand whether the material is:
- Liquid
- Slurry
- Foam
- Powder
- Granular solid
- Corrosive chemical
- Hygienic product
Temperature and Pressure
Some technologies perform better under:
- High pressure
- Vacuum conditions
- Cryogenic temperatures
- High-temperature processes
Vessel Geometry
Consider:
- Tank height
- Nozzle size
- Internal obstructions
- Agitators
- Narrow spaces
Accuracy Requirements
Inventory management may require higher accuracy than overflow protection.
Hazardous Area Classification
Ensure compliance with:
Maintenance Requirements
Non-contact technologies generally require less maintenance.
Installation Constraints
Evaluate:
- Available mounting locations
- Accessibility
- Cable routing
- Process shutdown requirements
Budget
Total lifecycle cost is more important than initial purchase cost.
What Is the Difference Between Contact and Non-Contact Level Measurement?
Contact Level Measurement
The sensor physically touches the process medium.
Examples
- Guided wave radar
- Hydrostatic transmitters
- Capacitance probes
- Float systems
Advantages
- Reliable in certain difficult conditions
- Often lower cost
- Good for interface applications
Disadvantages
- Potential coating issues
- Wear and corrosion
- More maintenance in harsh applications
Non-Contact Level Measurement
The sensor does not touch the process medium.
Examples
- Radar transmitters
- Ultrasonic transmitters
- Laser level sensors
Advantages
- Reduced maintenance
- Suitable for corrosive media
- Hygienic applications
- Longer service life
Disadvantages
- May be affected by vapor, dust, or foam
- Higher cost in some cases
What Is Interface Level Measurement?
Interface level measurement determines the boundary between two different liquids with varying densities.
Common examples include:
- Oil and water
- Solvent and water
- Hydrocarbon separation
- Chemical phase separation
Common Technologies for Interface Measurement
- Guided wave radar
- Differential pressure transmitters
- Capacitance transmitters
- Displacer systems
Guided wave radar is widely preferred for modern interface applications because of its accuracy and reduced maintenance requirements.
What Is the Most Accurate Level Measurement Technology?
Accuracy depends on the application.
Typical Accuracy Ranges
| Technology | Typical Accuracy |
|---|---|
| Radar | ±1 mm to ±5 mm |
| Guided Wave Radar | ±2 mm |
| Ultrasonic | ±0.25% to ±1% |
| Hydrostatic | ±0.1% to ±0.5% |
| Differential Pressure | ±0.1% to ±0.5% |
| Float Systems | Moderate |
For high-accuracy inventory applications, radar technology is often preferred.
How Does Foam Affect Level Measurement?
Foam can significantly impact measurement reliability.
Technologies Affected by Foam
- Ultrasonic transmitters
- Some radar systems
- Float systems
Best Technologies for Foam Applications
- Guided wave radar
- 80 GHz radar
- Differential pressure transmitters
Foam absorbs or scatters signals, reducing measurement reliability.
How Does Vapor Affect Level Instruments?
Heavy vapor can affect ultrasonic and some radar systems.
Best Technologies for Vapor Applications
- Guided wave radar
- High-frequency radar
- Differential pressure systems
Steam applications require careful technology selection due to condensation and temperature extremes.
What Causes False Level Readings?
False readings can occur due to:
- Improper installation
- Signal reflections
- Foam
- Turbulence
- Build-up on probes
- Electrical noise
- Incorrect calibration
- Wrong technology selection
- Condensation
- Obstructions in the tank
Proper engineering and commissioning reduce measurement issues significantly.
What Is the Difference Between 4–20 mA and Digital Communication?
4–20 mA Analog Signal
Traditional industrial transmitters commonly use 4–20 mA current loops.
Advantages
- Simple implementation
- Reliable transmission
- Industry standard
- Noise resistant
Limitations
- Limited diagnostic capability
- Only one process variable transmitted
Digital Communication Protocols
Modern smart transmitters support:
- HART
- FOUNDATION Fieldbus
- Profibus PA
- Modbus
- Ethernet/IP
- Profinet
Advantages
- Advanced diagnostics
- Remote configuration
- Multiple process variables
- Predictive maintenance
- Asset management integration
What Is SIL in Level Measurement?
SIL stands for Safety Integrity Level.
It is defined by IEC 61508 and IEC 61511 standards.
Why SIL Matters
Level instruments are often used in:
- Overfill prevention systems
- Safety shutdown systems
- High-high level alarms
- Hazardous chemical storage
SIL-certified instruments help reduce risk in safety instrumented systems (SIS).
Common SIL ratings include:
- SIL 1
- SIL 2
- SIL 3
What Is Overfill Protection?
Overfill protection systems prevent tanks from overflowing.
Importance
Tank overfills can lead to:
- Environmental disasters
- Fire hazards
- Product loss
- Regulatory violations
- Safety incidents
Common Overfill Technologies
- Vibrating fork switches
- Radar transmitters
- Float switches
- Independent high-level alarms
The oil and gas industry heavily emphasises overfill prevention standards.
What Is Open Channel Flow Measurement?
Open channel flow systems often use level measurement to calculate flow.
Common Applications
- Wastewater treatment
- Irrigation canals
- Stormwater systems
- Effluent monitoring
Technologies Used
- Ultrasonic level transmitters
- Radar level sensors
- Hydrostatic sensors
Level data is combined with weirs or flumes to calculate flow rate.
What Is Dead Band in Ultrasonic Level Measurement?
Dead band refers to the region close to the sensor where accurate measurement is not possible. This occurs because the sensor continues vibrating briefly after transmitting the ultrasonic pulse. Proper mounting height is necessary to avoid dead band issues.
What Is the Difference Between 2-Wire and 4-Wire Level Transmitters?
2-Wire Transmitters
- Powered through the signal loop
- Common for 4–20 mA systems
- Lower wiring cost
- Widely used in process industries
4-Wire Transmitters
- Separate power supply
- Often higher power capability
- Suitable for advanced applications
- Better for long-range measurements in some cases
What Is Tank Strapping?
Tank strapping is the process of correlating measured level with tank volume.
This is especially important because many tanks are not perfectly cylindrical.
Tank strapping tables are used for:
- Inventory management
- Custody transfer
- Bulk storage accounting
What Is Custody Transfer Level Measurement?
Custody transfer refers to highly accurate measurement used for financial transactions.
Examples include:
- Oil terminals
- Fuel depots
- LNG transfer systems
Radar level systems are commonly used because of their precision and repeatability.
How Important Is Calibration in Level Measurement?
Calibration is essential for ensuring accuracy and compliance.
Calibration Activities Include
- Zero adjustment
- Span adjustment
- Loop checking
- Sensor verification
- Simulation testing
Poor calibration can result in inaccurate inventory data and unsafe operating conditions.
How Often Should Level Instruments Be Calibrated?
Calibration intervals depend on:
- Process criticality
- Regulatory requirements
- Manufacturer recommendations
- Historical performance
- Safety classification
Typical intervals range from:
- 6 months
- 12 months
- 24 months
Critical safety applications may require more frequent verification.
What Is the Difference Between Gauge and Absolute Pressure in Level Measurement?
Gauge Pressure
Measured relative to atmospheric pressure.
Absolute Pressure
Measured relative to perfect vacuum. Understanding the difference is important in pressurised vessel applications.
Can One Level Technology Work for Every Application?
No. Each technology has strengths and weaknesses.
For example:
- Ultrasonic is excellent for clean water applications
- Radar is ideal for challenging industrial environments
- Guided wave radar works well for interface measurement
- Hydrostatic sensors are economical for simple tanks
Successful instrumentation engineering depends on proper technology selection.
What Are the Biggest Challenges in Solids Level Measurement?
Solids measurement is often more difficult than liquid measurement.
Common Challenges
- Dust generation
- Irregular surfaces
- Material bridging
- Low dielectric materials
- Build-up
- Large silos
- Extreme angles of repose
Recommended Technologies
- 80 GHz radar
- Guided wave radar
- Weight and load cells
- Rotary paddle switches
How Does Build-Up Affect Level Sensors?
Build-up can cause:
- False echoes
- Signal attenuation
- Probe coating
- Incorrect switching
Sticky applications require technologies resistant to coating.
Common examples include:
- Asphalt
- Sludge
- Adhesives
- Syrups
- Slurries
What Is Echo Mapping in Radar Level Measurement?
Echo mapping is a feature used to ignore false reflections from:
- Tank nozzles
- Internal structures
- Agitators
- Ladders
- Pipes
Modern radar transmitters use advanced algorithms to distinguish true level signals from interference.
Why Is Dielectric Constant Important?
Dielectric constant influences the reflectivity of radar and capacitance systems.
Low dielectric materials can be harder to measure.
Examples include:
- Hydrocarbons
- Plastic pellets
- Dry powders
Higher frequency radar systems generally perform better in low dielectric applications.
What Is the Future of Level Measurement Instrumentation?
Level measurement technology continues evolving rapidly.
Emerging Trends
IIoT Integration
Industrial Internet of Things (IIoT) systems allow remote monitoring and analytics.
Wireless Instrumentation
WirelessHART and ISA100 technologies reduce installation costs.
Predictive Maintenance
Smart diagnostics help identify failures before downtime occurs.
Cloud-Based Monitoring
Remote asset management improves visibility across multiple facilities.
AI and Advanced Analytics
Artificial intelligence supports:
- Failure prediction
- Process optimisation
- Smart alarming
- Inventory forecasting
Advanced Radar Technology
80 GHz radar continues becoming the dominant technology for difficult applications.
What Are the Best Practices for Installing Level Instruments?
Installation Best Practices
Avoid Obstructions
Keep sensors away from:
- Agitators
- Fill streams
- Internal ladders
- Heating coils
Ensure Proper Grounding
Proper grounding reduces electrical noise.
Use Correct Mounting Locations
Incorrect positioning can create false readings.
Follow Manufacturer Guidelines
Every technology has specific installation requirements.
Consider Maintenance Access
Ensure technicians can safely access instruments.
Verify Process Connections
Correct flange and thread compatibility is critical.
What Are Common Troubleshooting Steps for Level Instruments?
Basic Troubleshooting Checklist
Check Power Supply
Verify:
- Loop voltage
- Wiring polarity
- Power stability
Inspect Wiring
Look for:
- Loose connections
- Corrosion
- Shielding issues
Verify Calibration
Incorrect calibration causes inaccurate readings.
Check for Build-Up
Probe coating often affects sensor performance.
Review Configuration
Ensure:
- Tank height settings are correct
- Empty/full calibration is correct
- Signal damping is appropriate
Inspect Process Conditions
Changes in:
- Density
- Temperature
- Pressure
- Foam
- Vapor
may affect measurement.
What Industries Use Level Measurement Instrumentation?
Level instrumentation is used in virtually every process industry.
Major Industries
Oil and Gas
Applications include:
- Crude storage
- Separator vessels
- LNG tanks
- Refineries
Chemical Processing
Used in:
- Reactors
- Solvent tanks
- Acid storage
- Mixing vessels
Water and Wastewater
Applications include:
- Clarifiers
- Wet wells
- Reservoirs
- Lift stations
Food and Beverage
Requirements include:
- Hygienic design
- CIP compatibility
- FDA compliance
Pharmaceuticals
Critical for:
- Sterile processes
- High-purity systems
- Batch manufacturing
Mining and Cement
Applications include:
- Silos
- Ore bins
- Slurry tanks
Power Generation
Used in:
- Boiler drums
- Condensate tanks
- Cooling systems
Frequently Asked Questions (Quick Answers)
Which level transmitter is best for corrosive chemicals?
Radar and guided wave radar are commonly preferred because they offer non-contact or chemically resistant measurement options.
Which technology is best for water tanks?
Ultrasonic and hydrostatic transmitters are widely used for water applications.
Which level sensor works best for powders?
80 GHz radar is highly effective for powder and bulk solid applications.
Can radar measure through vapor?
Yes, radar performs significantly better than ultrasonic in vapor-heavy environments.
Do level transmitters require regular maintenance?
Yes, although non-contact radar systems generally require less maintenance than contact-based technologies.
What is the difference between a level switch and a level transmitter?
A switch provides point detection, while a transmitter provides continuous measurement.
Are wireless level transmitters reliable?
Modern industrial wireless systems are highly reliable when properly engineered.
Can one transmitter measure both level and volume?
Yes. Many smart transmitters integrate tank geometry calculations.
What is the safest technology for hazardous areas?
The safest choice depends on certification requirements and process conditions. SIL-rated radar and vibrating fork devices are widely used.
Level measurement instrumentation plays a foundational role in modern process industries. Accurate level monitoring ensures operational safety, inventory control, process efficiency, environmental compliance, and reliable automation.
No single level measurement technology is ideal for every application. Successful implementation requires careful evaluation of process conditions, vessel design, product characteristics, safety requirements, maintenance expectations, and long-term operational goals.
As industrial automation continues advancing through digitalisation, IIoT, predictive maintenance, and smart instrumentation, level measurement technologies are becoming more intelligent, reliable, and connected than ever before.
Understanding the fundamentals and frequently asked questions surrounding level instrumentation helps engineers, technicians, plant managers, and procurement teams make informed decisions that improve plant performance and reduce operational risk.
Whether selecting radar transmitters for refinery tanks, ultrasonic sensors for wastewater systems, or guided wave radar for interface applications, the key to successful level measurement lies in choosing the right technology for the right process.
Level measurement is not simply about knowing how much material is inside a tank. It is about ensuring safe operations, reliable process control, efficient production, accurate inventory management, and long-term plant reliability.
Industrial plants that invest in proper instrumentation engineering, quality level measurement technologies, skilled commissioning, and preventive maintenance ultimately achieve:
- Higher operational efficiency
- Reduced downtime
- Better safety performance
- Lower maintenance costs
- Improved product quality
- Greater process reliability
In today’s increasingly automated industrial environment, intelligent level measurement instrumentation remains one of the most valuable components of modern process control systems. Talk to our expert team at Process Instrument Solutions for more information about your level measurement needs.
